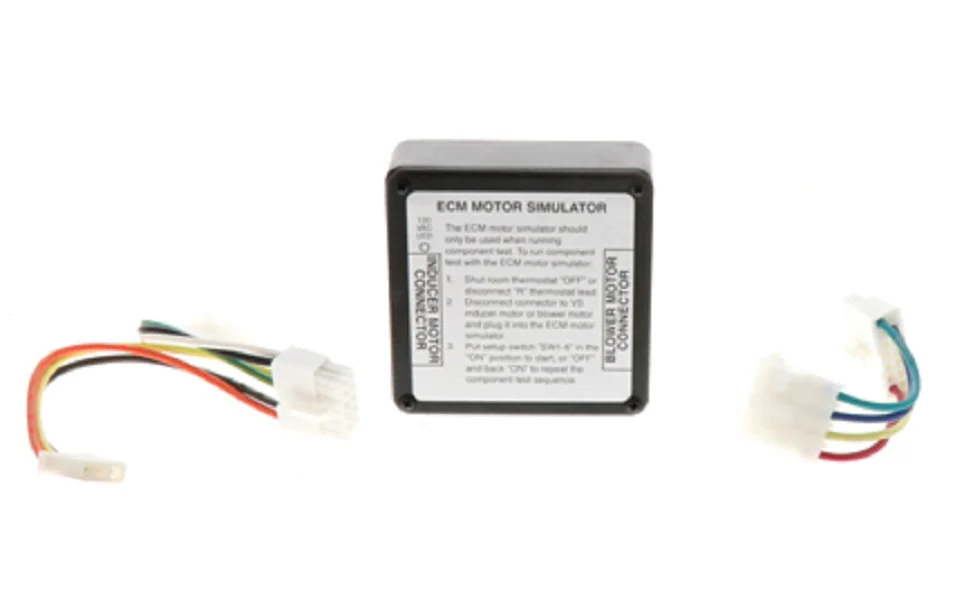

Carrier KGBSD0301FMS Motor Kit Simulator
Optimized for accurate diagnostic routines, the Carrier KGBSD0301FMS Motor Kit Simulator is an essential OEM tool for identifying failures in variable speed systems. Instead of guessing between a faulty control board and a failed blower, this ECM motor simulator kit allows technicians to bypass the motor and isolate the control signal. It is specifically designed for HVAC troubleshooting on Carrier, Bryant, and Payne variable speed furnaces, providing a definitive test to confirm if the ECM motor module or the furnace control board is the root cause of 12, 32, 41, 42, or 44 status codes.
The kit includes a specialized diagnostic motor simulator and necessary adapter harnesses, including a 12-pin connector conversion for VCA and ECM 3.0 motor installations. By simulating the electrical load and feedback of a functional motor, this tool ensures precise Carrier furnace repair without the risk of installing expensive parts unnecessarily. Its compact design and direct-plug compatibility make it a reliable standard for any veteran contractor’s service bag, streamlining the process of verifying variable speed blower motor communication through 24VAC signals.
Key Benefits
- Precise Diagnostics: Instantly isolates whether a communication fault lies within the motor module or the furnace control board.
- OEM Compatibility: Designed specifically for use with Carrier Factory Authorized Parts and units utilizing HK42FZ series controls.
- Comprehensive Kit: Includes adapter harnesses for ECM 3.0 motors and 12-pin connector conversions for versatile field application.
- Reduced Downtime: Eliminates "parts changing" by providing a reliable simulation of motor performance during system self-tests.
- Status Code Resolution: Highly effective for clearing and diagnosing persistent airflow and communication errors like Status Code 41 or 44.
Common Questions
Can I use this simulator on any ECM motor?
This kit is engineered specifically for Carrier-family variable speed furnaces. It is intended for use during the furnace component self-test function and may require the included adapter harnesses depending on the specific motor generation (e.g., ECM 2.3 vs. 3.0).
What is the primary function of the KGBSD0301FMS?
It acts as a known-good load to test the control board's output. If the system functions correctly with the simulator but fails with the motor connected, you have confirmed a failed motor or module.
Does this kit work for both blower and inducer motors?
Yes, the provided adapter harnesses allow for troubleshooting both variable speed inducer motors and variable speed blower motors in compatible gas-fired furnaces.
