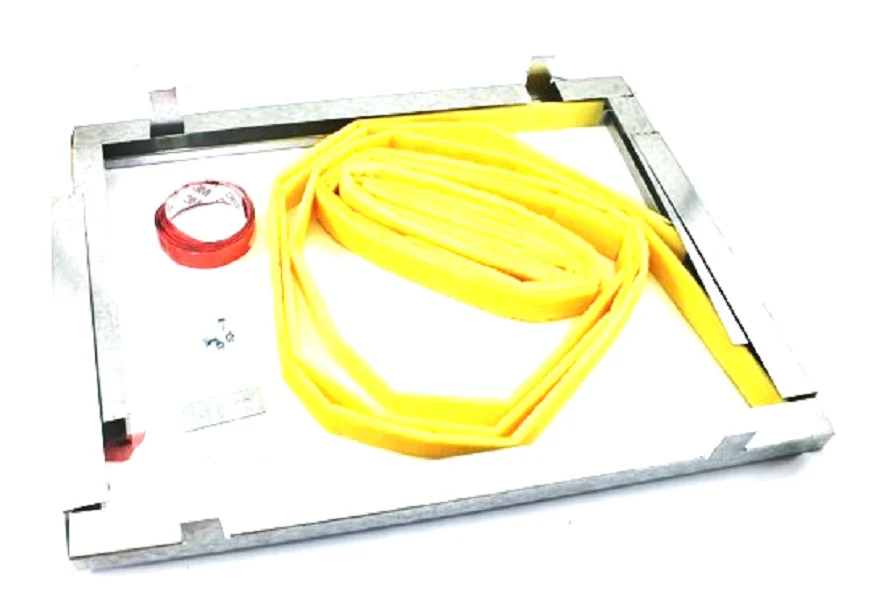

Carrier KGASB0201ALL Downflow Base
The Carrier KGASB0201ALL Downflow Base is a critical support component designed specifically for downflow furnace installations surface-mounted on combustible flooring. As an OEM furnace subbase kit, this unit facilitates a safe, non-combustible transition between the chassis and the structure, ensuring strict adherence to mechanical codes. Engineered for high-temperature resilience, it is compatible with Carrier multi-poise gas furnaces, including 80% AFUE, 90% AFUE, and 95%+ high-efficiency condensing units ranging from 33.3-inch to 40-inch cabinet heights. The KGASB0201ALL provides the necessary combustible floor base clearance to prevent heat transfer while maintaining a rigid, level foundation that minimizes vibration during the heating cycle. For service technicians, utilizing this HVAC furnace subbase is essential when the evaporator coil cabinet is not used in a downflow configuration, providing the required structural bridge and airflow clearance for seamless downstream duct integration.
Key Benefits- Code Compliance: Required for safe HVAC installation of downflow gas furnaces on wood or other combustible floor surfaces.
- OEM Compatibility: Precision-fit for Carrier, Bryant, and Payne multi-poise furnace models, ensuring housing alignment.
- Structural Integrity: Durable metal construction supports the full weight of the furnace and high-static blower assemblies.
- Thermal Barrier: Prevents direct heat contact with flooring, reducing fire hazards in residential and commercial applications.
- Installation Flexibility: Simplifies downflow conversions for 80% and 90% AFUE systems where a coil cabinet is absent.
When is a KGASB0201ALL subbase mandatory?
This base must be installed whenever a downflow gas furnace is placed directly on a combustible surface unless a matching cased evaporator coil is positioned between the furnace and the floor.
Does this kit work with all cabinet widths?
The KGASB0201ALL is designed for specific furnace footprints. Always verify your furnace cabinet width (e.g., 14.5", 17.5", 21", or 24.5") against the subbase dimensions to ensure a proper airtight seal.
Can I use this for upflow or horizontal applications?
No, this component is strictly engineered for downflow furnace orientation to address specific clearance-to-combustible requirements at the supply air discharge.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
