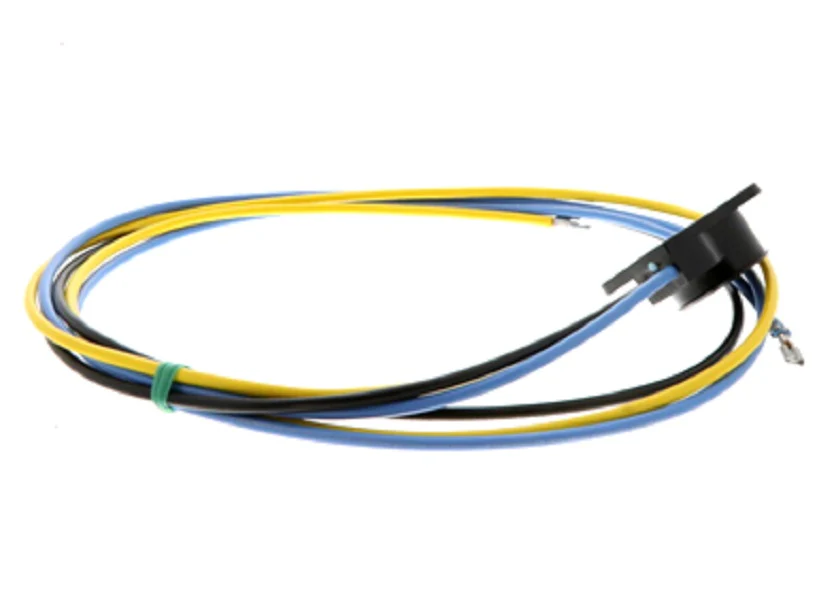

Carrier HY06ZZ020 Plug Assembly
The Carrier HY06ZZ020 Compressor Plug Assembly is a high-performance OEM HVAC wiring harness engineered for industrial and commercial cooling applications. Designed to provide a secure, quick-tight connection to compressor terminals, this sealed electrical plug ensures superior encapsulation of mating female terminals. This critical design feature isolates the compressor terminal connections from ambient moisture, significantly reducing the risk of corrosion, pitting, and discoloration that leads to premature failure. This HY06ZZ020 replacement part is built with a resilient housing that aligns perfectly with the relief slot in the terminal box, ensuring the cover cannot be secured unless the conductors are correctly positioned. This internal safety mechanism facilitates a proper HVAC compressor moisture-proof seal and maintains electrical integrity across a wide range of Carrier, Bryant, and Payne units. Weighing approximately 1.3 to 1.4 lbs, the assembly is optimized for HVAC voltage stability and is compatible with numerous series, including the 48HCEA075A, 48HCED125A, and 50TCD145A.
Key Benefits
- Engineered Moisture Barrier: Encapsulated design prevents moisture ingress, mitigating terminal corrosion and electrical arcing.
- Mechanical Alignment Logic: Precision-molded to fit terminal box relief slots, preventing improper cover seating and ensuring a clean installation.
- Durable Material Composition: High-grade industrial polymers withstand high-temperature compressor environments without cracking or deformation.
- OEM Precision Fit: Eliminates the connectivity issues often found in universal harnesses, maintaining factory-grade electrical safety.
Common Questions
Is this plug assembly compatible with scroll and reciprocating compressors?
Yes, the Carrier HY06ZZ020 is designed to interface with various compressor architectures used in Carrier-branded rooftop units and split systems. Its specific lead length and terminal gauge are optimized for consistent compressor power transfer.
Will this plug solve arcing issues at the compressor terminals?
If the existing terminals are not already pitted, installing a new HVAC compressor plug assembly can resolve poor contact issues. The secure friction fit of the OEM HY06ZZ020 ensures stable amperage draw and reduces heat buildup.
Does this harness require additional sealing kits for outdoor use?
No, the HY06ZZ020 is engineered as a complete weather-resistant wiring assembly. The plug housing and conductor insulation are designed to meet factory standards for environmental protection without secondary sealants.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
