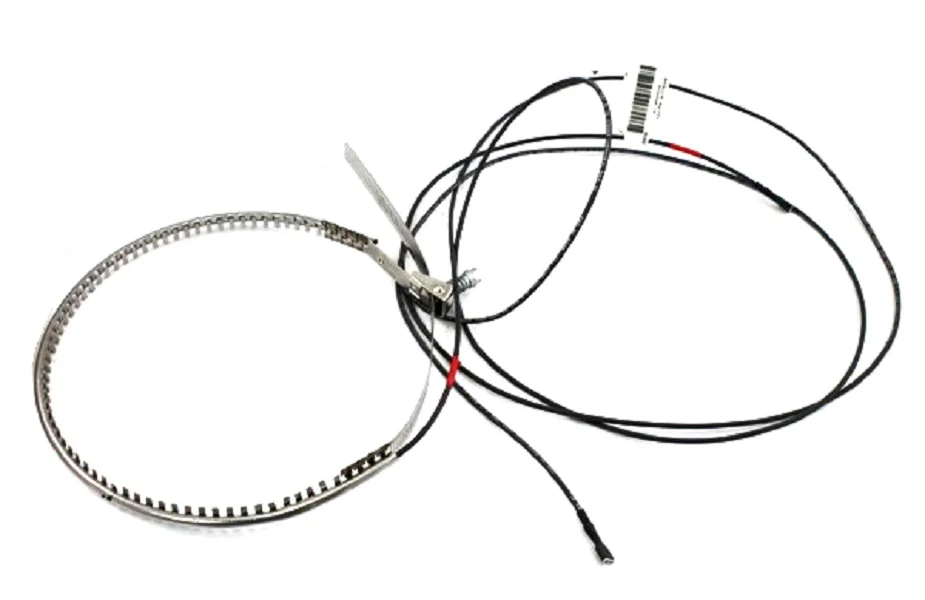

Carrier HT32TC743 Heater
The Carrier HT32TC743 is a high-performance 40W 480V crankcase heater engineered for demanding industrial and commercial HVACR applications. As a critical component in compressor protection, this heater maintains oil temperature above the refrigerant saturation point during off-cycles. By preventing refrigerant migration and subsequent oil dilution, the HT32TC743 ensures consistent compressor lubrication and prevents liquid slugging during high-torque startups. This 57-inch 480-volt heating element is designed specifically for a secure fit on larger Carrier compressor crankcases, providing reliable heat transfer and thermal stability in extreme cold-weather conditions.
For veteran technicians, the HT32TC743 represents a standard-issue solution for preventative maintenance and high-voltage system reliability. Operating at 40 watts, it delivers concentrated heat to the sump, ensuring that viscosity issues do not compromise bearing life or internal mechanical clearances. This OEM replacement part facilitates straightforward field installation, making it the preferred choice for contractors managing large-scale commercial HVAC equipment where 480V power distribution is standard.
Key Benefits- Optimized Oil Viscosity: Maintains proper lubrication levels to reduce friction and mechanical wear during initial compressor startup.
- Refrigerant Migration Protection: Actively prevents liquid refrigerant from condensing in the crankcase oil during system idle periods.
- Industrial Voltage Compatibility: Specifically rated for 480V circuits, eliminating the need for external step-down transformers in high-voltage industrial packages.
- Durable 57-Inch Design: Flexible yet robust construction allows for a precise wrap around the compressor housing for maximum thermal conductivity.
- Is the Carrier HT32TC743 compatible with 208/230V systems? No, this is a 480V specific component. Using it on lower voltage systems will result in significantly reduced wattage output and insufficient heating performance.
- When should a crankcase heater be replaced? Technicians should test for continuity during seasonal maintenance. A tripped breaker or blown fuse is often a primary indicator of a shorted heating element.
- Does this heater require constant power? Most control circuits are wired to energize the crankcase heater only when the compressor is in the off-cycle via auxiliary contacts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
