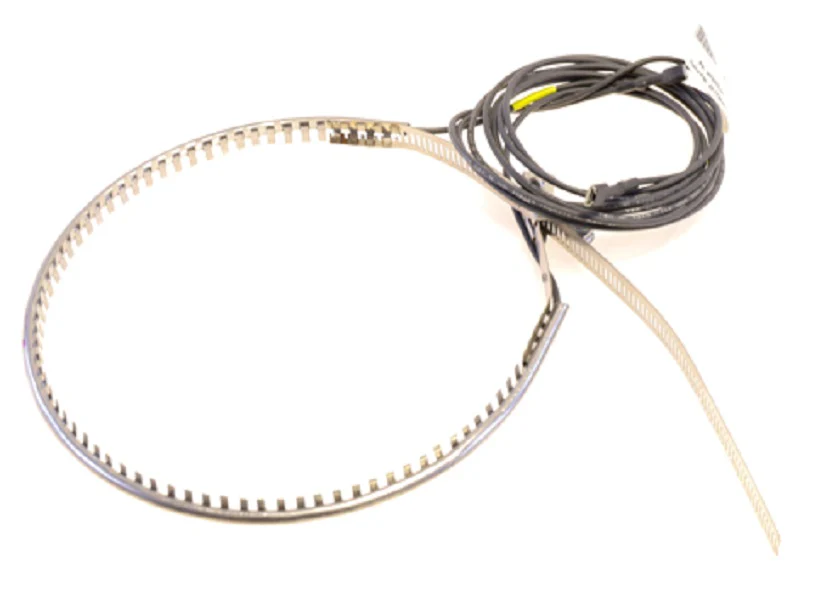

Carrier HT32TC243 Crankcase Heater
The Carrier HT32TC243 Crankcase Heater is a critical OEM replacement part engineered specifically for high-capacity commercial HVAC systems and residential heat pumps. Technical field data confirms this 9.5-inch belly-band heater is designed to wrap securely around the compressor base, maintaining essential oil temperature during the off-cycle. By preventing refrigerant migration and condensation in the sump, it eliminates the risk of flooded starts and the subsequent oil dilution that leads to bearing washout. This 180W, 240V heater is a required component for sustained performance in cold-weather environments and systems with long line sets exceeding 80 feet, ensuring the compressor lubricant retains ideal viscosity for immediate load-bearing upon startup.
For service technicians, the Carrier HT32TC243 offers a precise fit for popular Carrier, Bryant, and Payne models, including the 48HCDD125A and 50TCQD125A series. Operating at 50/60 Hz, this heater provides consistent thermal distribution across the compressor shell. Proper installation involves positioning the band below the compressor dimples and securing the clamp over the vertical weld seam to prevent localized hot spots. Integrating this genuine HVAC compressor heater into your preventative maintenance routine is the most effective way to safeguard 3-phase and scroll compressors against liquid slugging and premature mechanical failure.
Key Benefits for Technicians:- Eliminates Liquid Slugging: Maintains sump temperatures above the refrigerant saturation point to prevent liquid from entering the cylinders.
- Preserves Oil Chemistry: Stops refrigerant from mixing with the compressor oil, preventing foaming and ensuring 100% lubrication at startup.
- Optimized for Cold Starts: Provides 180W of concentrated heat to facilitate smooth mechanical movement in low ambient conditions.
- Corrosion-Resistant Construction: Built with high-grade materials to withstand exterior exposure and thermal expansion cycles.
- Universal Compatibility: Verified for use across a wide range of Carrier-manufactured rooftop units and split systems.
When should the HT32TC243 be energized?
Standard field procedure requires the crankcase heater to be energized at least 24 hours prior to initial compressor startup to ensure all migrated refrigerant has been boiled out of the oil.
Does this heater run while the compressor is operating?
This heater is typically wired through an auxiliary contact or controlled via an outdoor thermostat to de-energize while the compressor is running and re-energize during the off-cycle.
Can I use this on non-Carrier compressors?
While designed as a Carrier OEM part, this 9.5" band heater can be applied to other compressors with matching diameters and 240V power requirements, provided technical specifications are met.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
