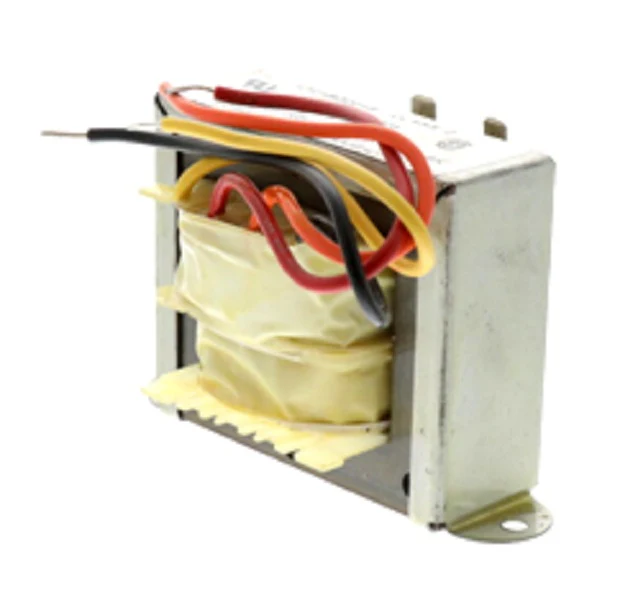

The Carrier HT01BD201 is a multi-tap 40VA HVAC transformer engineered for high-performance voltage regulation in light commercial and residential climate control systems. This Class 2 transformer serves as a reliable power source for 24V control circuits, effectively stepping down primary input voltages from 200V, 230V, or 460V. Its multi-tap primary design allows for versatile field integration, making it a critical Carrier replacement part for technicians servicing a wide range of Carrier, Bryant, and Payne air handlers and furnaces. Built with a robust steel frame and industry-standard lead connections, this unit ensures stable operation for thermostats, relays, and integrated control boards.

Designed for immediate swap-outs, the Carrier 24 volt transformer features color-coded primary leads—Yellow for Common, Red for 200V, Orange for 230V, and Black for 460V—to streamline the wiring process during emergency HVAC repair. This factory authorized part is specifically calibrated to minimize energy loss and heat generation within the control cabinet, maintaining system integrity even under peak load conditions. Whether you are performing routine furnace maintenance or a complex system diagnostic, the HT01BD201 provides the consistent secondary output required to prevent low-voltage dropouts and communication errors in modern communicating and non-communicating HVAC units.

Key Benefits:

• Universal Compatibility: Multi-voltage primary taps (200/230/460V) make this a versatile stock item for various commercial and residential Carrier, Bryant, and Payne equipment.
• Precise 24V Output: Rated at 40VA to provide stable 24V secondary power to modern control boards, smart thermostats, and low-voltage accessories.
• Class 2 Rated: Meets rigorous safety standards for inherently limited power sources, protecting sensitive downstream components from electrical surges.
• Rugged Construction: Built with high-quality windings and lead-to-lead connections to handle the vibration and thermal stress typical of furnace and air handler environments.
• OEM Performance: Ensures exact fit and function, eliminating the mounting and wiring modifications required by generic universal transformers.

Common Questions:

• What are the wiring lead colors for the primary taps? The primary leads use a standard color code for Carrier units: Yellow is Common, Red is 200V, Orange is 230V, and Black is 460V.
• Can I use this to power a 24V smart thermostat? Yes, with a 40VA rating, this transformer provides sufficient power for electronic thermostats along with standard system relays and contactors.
• Does this part replace different VA ratings? This unit replaces many 40VA and lower-rated (e.g., 20VA) transformers, provided the primary voltage taps match your system requirements.
