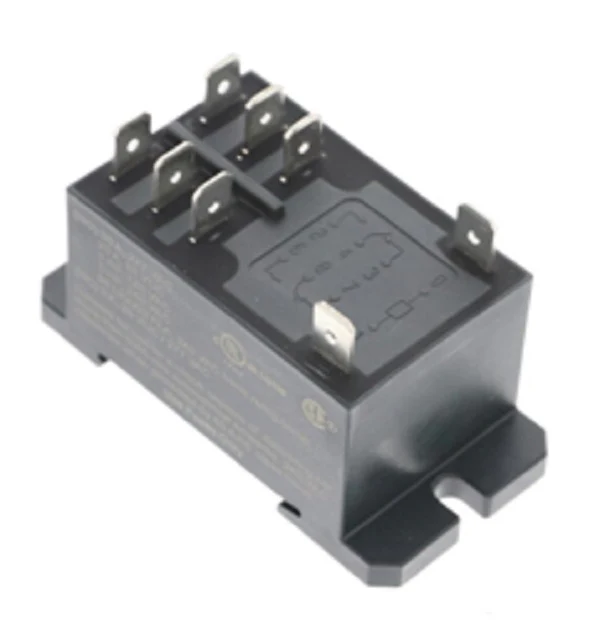

Carrier HN61ZK002 Relay
The Carrier HN61ZK002 Relay is a specialized 8-pin time delay relay designed for precise sequence management within commercial and residential HVACR systems. Built to handle heavy-duty electrical loads, this 24V coil relay features a robust 150VA at 250V capacity, ensuring stable switching floor-to-ceiling. As a direct OEM replacement part for the HN61KK025 and an equivalent to the Siemens 3TX7131-4DC13, it facilitates seamless integration during field service and repairs. This component functions as an internal timer to mitigate high-rate compressor cycling, reducing unnecessary mechanical strain and improving overall system efficiency. Designed for high-power applications, the HN61ZK002 is suitable for circuits delivering up to 5000 RMS symmetrical amperes when protected by appropriate K5-class fuses. Techs can rely on its UL listed and CSA certified construction for consistent performance in demanding environments where timing accuracy is critical for preventing thermal overload and operational sequencing errors.
Key Benefits- Enhanced Compressor Protection: Prevents short-cycling by enforcing specific delay intervals, extending the service life of expensive system components.
- High Load Capacity: Rated for 150VA at 250V, making it ideal for managing the high-power switching requirements found in industrial HVAC equipment.
- Broad Compatibility: Serves as a primary Carrier HN61ZK002 replacement for legacy HN61KK025 models and cross-references with Siemens 3TX7131-4DC13.
- Standardized Installation: Features a standard 8-pin configuration that seats cleanly into existing mounts and connectors for fast, reliable field installation.
Is the Carrier HN61ZK002 a direct fit for older HN61KK025 relays?
Yes, this unit is the factory-designated replacement for the HN61KK025, maintaining the same mounting footprint and electrical characteristics required for a drop-in install.
What is the primary function of this time delay relay in an HVAC circuit?
It manages the timing of switching operations, specifically ensuring that internal components do not energize simultaneously or cycle too quickly, which protects the system from electrical surges and mechanical wear.
Can this relay be used in 240VAC circuits?
Yes, it is rated for a maximum of 250V and is suitable for 240VAC applications, provided the circuit is protected by 60A K5-class fuses or equivalent protection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $111.43
-65%$111.43
$39.00Carrier HN61ZK002 Relay
