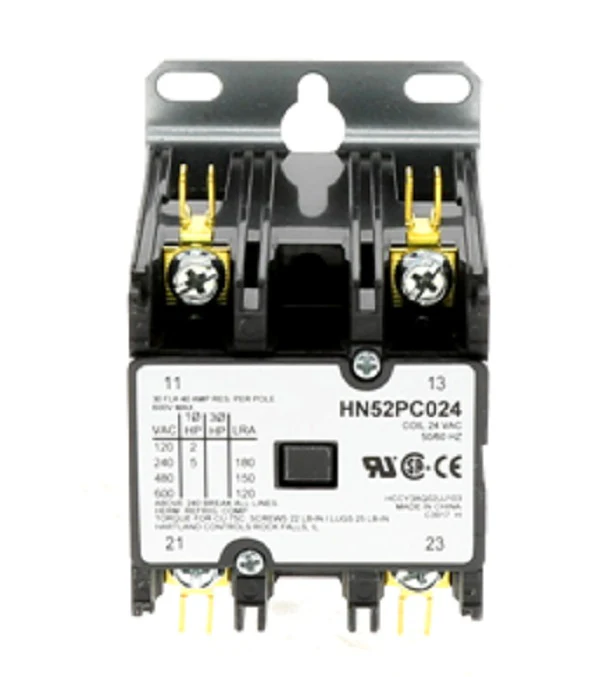

Carrier HN52PC024 Contactor
The Carrier HN52PC024 Contactor is a high-reliability 2-pole 30-amp contactor designed for heavy-duty switching in residential and commercial condensing units. Engineered with a 24V coil, this OEM component is the primary interface between your low-voltage control circuit and high-voltage loads, such as compressors and condenser fan motors. Featuring a double-break contact configuration, the HN52PC024 ensures a clean break of the electrical arc, minimizing pitting and preventing welded contacts during high-draw startup cycles. This unit is rated for 30 amps of continuous current and is commonly found in Carrier, Bryant, and Payne heat pumps and air conditioners. For technicians performing field service, this direct replacement simplifies installation by matching original mounting footprints and terminal locations, ensuring accurate HVAC contactor wiring. Using an OEM Carrier replacement part like the HN52PC024 maintains the original performance specifications and circuit integrity of the equipment, preventing nuisance trips and premature motor failure.
Key Benefits
- High Amperage Capacity: Rated for 30 FLA (Full Load Amps), making it ideal for the high-current demands of modern HVAC compressors.
- Precision 24VAC Control: Optimized for standard control boards to ensure reliable engagement and disengagement without "chattering."
- Double-Break Design: Provides two sets of contacts per pole to distribute the electrical load, significantly extending the service life of the mechanical contactor.
- Compact Enclosure: Designed for standard control boxes in heat pumps and air handlers, reducing the risk of interference with nearby capacitors or wire harnesses.
- Universal Compatibility: Serves as a direct substitute for a wide range of legacy 2-pole, 24V, 30A contactors across the Carrier family of brands.
Common Questions
- Can I use this to replace a 1-pole contactor? While physically possible if the mounting matches, replacing a 1-pole with this 2-pole contactor provides a safer break on both legs of a 230V circuit, though it may require minor wiring adjustments.
- How do I know if the coil is failing? If the 24V coil lacks continuity or shows signs of burning, the contactor will fail to pull in, preventing the outdoor unit from starting.
- Does this work with 40-amp applications? No, you should never undersize a contactor. For systems requiring 40 amps, use a higher-rated component to avoid overheating the terminals.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
