Carrier HK52ER156 Module
The Carrier HK52ER156 is a factory-authorized 1 HP motor control module designed for high-efficiency ECM 5.0 blower systems. As a veteran-grade OEM replacement part, this module provides the precise variable speed and torque regulation required to maintain the design airflow specifications of Carrier, Bryant, and Payne furnaces and air handlers. Engineered by Genteq, the HK52ER156 motor control module utilizes a 16-pin interface to facilitate seamless communication between the furnace integrated control board and the blower motor, ensuring the system operates at peak thermodynamic efficiency and reduces static pressure-related stress on the induction assembly.
For technicians troubleshooting a non-responsive blower, the Carrier HK52ER156 is the direct Genteq motor module replacement for older RMOD52AE120 units. It features robust microprocessor circuitry capable of handling 120/240V inputs and is rated for 12.8/9.1 amps. Replacing only the control module rather than the complete motor assembly is a standard cost-effective repair for HVAC motor control issues involving communication failures or "Error 41" and "Error 44" faults on Infinity and Evolution systems. This module is essential for restoring programmed speed taps and ensuring the correct air delivery for 1 HP HVAC applications.
Key Benefits:- Precise Airflow Regulation: Uses advanced ECM 5.0 logic to maintain consistent CFM despite variations in external static pressure.
- Direct OEM Compatibility: Engineered as a drop-in replacement for Carrier HK52ER156, ensuring exact electrical and mounting alignment with standard 48-frame motors.
- Enhanced System Reliability: Features internal overload protection and high-quality heat-sink components to manage thermal loads during continuous operation.

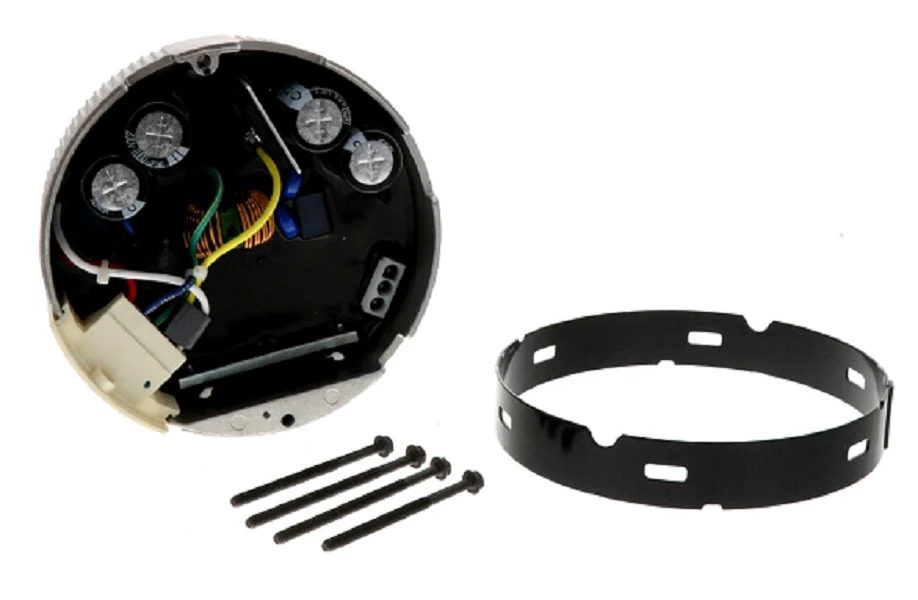

- Simplified Installation: Includes the 16-pin connector housing, adapter ring, and mounting hardware for immediate field replacement.
- Can I replace just the module instead of the whole motor? Yes, if the motor windings have passed a resistance check (typically three-phase low resistance with no ground shorts), replacing the Carrier HK52ER156 module alone often resolves communication or startup failures.
- Does this module require programming in the field? This factory authorized part is pre-programmed for specific HVAC profiles, but always verify current speed tap settings against the unit's original airflow tables.
- What causes these modules to fail prematurely? High static pressure from dirty filters or undersized ducting often leads to over-amping; always check the HVAC motor control environment to ensure the new module operates within designed limits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $616.02
-65%$616.02
$215.61Carrier HK52ER156 Module
