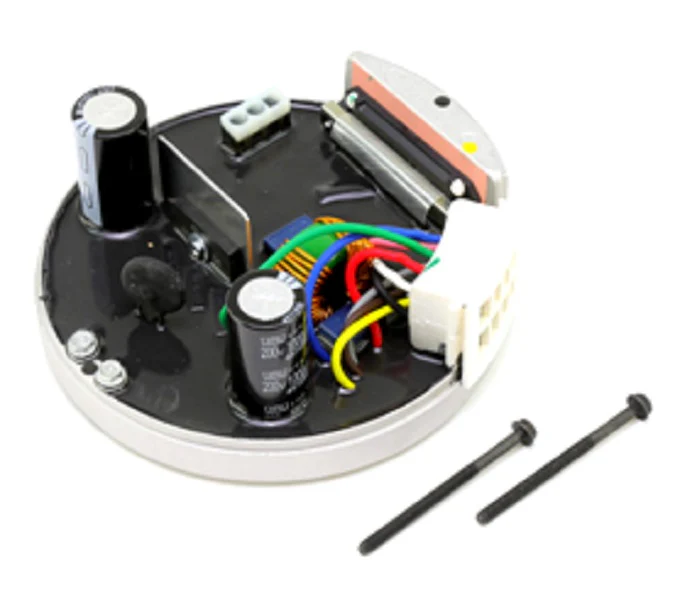

Carrier HK46ER253 Motor Module
The Carrier HK46ER253 Motor Module is a high-performance 3/4HP ECM X-13 replacement component engineered for precision airflow control in Carrier, Bryant, and Payne HVAC systems. This electronically commutated motor (ECM) module is a direct-fit solution for constant torque applications, utilizing advanced X-13 technology to optimize energy consumption across varying static pressures. Operating on a 208-230V power supply, this module is designed for NEMA 48Y frame motors and features programmed speed taps to maintain consistent CFM delivery. As an OEM replacement part, it ensures seamless communication between the system's furnace or air handler control board and the blower motor, preventing common issues like improper low voltage signal interpretation or airflow oscillation. This blower motor control module is built with industrial-grade materials to withstand the thermal demands of continuous operation, effectively reducing vibration-related wear and maximizing the efficiency of your HVAC blower assembly.
Key Benefits:- Precision Torque Management: ECM X-13 technology adjusts motor output to maintain constant airflow as internal static pressure changes.
- System Efficiency: Significantly reduces energy consumption compared to standard PSC motors, lowering operational costs for Carrier HVAC systems.
- Direct OEM Integration: Pre-programmed for use in specific Carrier, Bryant, and Payne models, including HD46AR251 and FB4CNP060 series.
- Seamless Installation: Designed as a "drop-in" motor module replacement with standard high-voltage and 24V signal connectors, requiring no field programming.
- Voltage Versatility: Supports 208/240V configurations at 50/60Hz, offering reliable performance across various residential and commercial power grids.
- Do I need to replace the entire motor or just the module? If the motor spins freely by hand and ohms correctly between phases (typically under 20 ohms), the failure is likely concentrated in the HK46ER253 module. Visual signs like a burnt thermistor or capacitor within the end cap often confirm module failure.
- What causes these ECM modules to fail prematurely? The most frequent causes are high static pressure from restricted ductwork or dirty filters, which forces the motor to draw higher current, and electrical surges. Installing an inline ECM surge protector is a common preventative measure used by technicians.
- Is field programming required for this part? No, this OEM Carrier motor module comes factory-programmed with the correct speed tap logic and airflow parameters, meaning it is ready for immediate operation once connected to the existing wiring harness.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $471.01
-65%$471.01
$164.85Carrier HK46ER253 Motor Module
The Carrier HK46ER253 Motor Module is a high-performance 3/4HP ECM X-13 replacement component engineered for precision airflow control in Carrier, Bryant, and Payne HVAC systems. This electronically commutated motor (ECM) module is a direct-fit solution for constant torque applications, utilizing advanced X-13 technology to optimize energy consumption across varying static pressures. Operating on a 208-230V power supply, this module is designed for NEMA 48Y frame motors and features programmed speed taps to maintain consistent CFM delivery. As an OEM replacement part, it ensures seamless communication between the system's furnace or air handler control board and the blower motor, preventing common issues like improper low voltage signal interpretation or airflow oscillation. This blower motor control module is built with industrial-grade materials to withstand the thermal demands of continuous operation, effectively reducing vibration-related wear and maximizing the efficiency of your HVAC blower assembly.
Key Benefits:- Precision Torque Management: ECM X-13 technology adjusts motor output to maintain constant airflow as internal static pressure changes.
- System Efficiency: Significantly reduces energy consumption compared to standard PSC motors, lowering operational costs for Carrier HVAC systems.
- Direct OEM Integration: Pre-programmed for use in specific Carrier, Bryant, and Payne models, including HD46AR251 and FB4CNP060 series.
- Seamless Installation: Designed as a "drop-in" motor module replacement with standard high-voltage and 24V signal connectors, requiring no field programming.
- Voltage Versatility: Supports 208/240V configurations at 50/60Hz, offering reliable performance across various residential and commercial power grids.
- Do I need to replace the entire motor or just the module? If the motor spins freely by hand and ohms correctly between phases (typically under 20 ohms), the failure is likely concentrated in the HK46ER253 module. Visual signs like a burnt thermistor or capacitor within the end cap often confirm module failure.
- What causes these ECM modules to fail prematurely? The most frequent causes are high static pressure from restricted ductwork or dirty filters, which forces the motor to draw higher current, and electrical surges. Installing an inline ECM surge protector is a common preventative measure used by technicians.
- Is field programming required for this part? No, this OEM Carrier motor module comes factory-programmed with the correct speed tap logic and airflow parameters, meaning it is ready for immediate operation once connected to the existing wiring harness.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
