Carrier HK46ER230 Motor Control

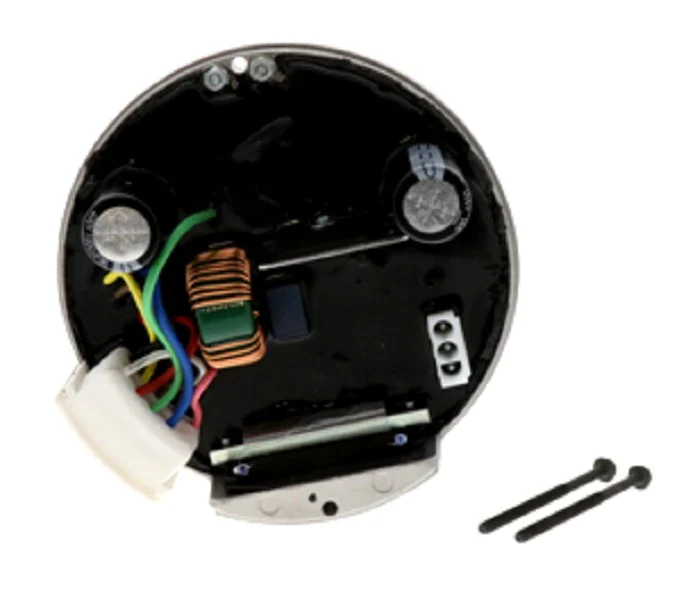

The Carrier HK46ER230 is a genuine OEM ECM X-13 Motor Control designed specifically for 3/4 HP blower applications. As a critical component in high-efficiency residential systems, this direct replacement motor module is programmed to interface seamlessly with Carrier, Bryant, and Payne air handlers and furnaces. Unlike standard permanent split capacitor (PSC) components, this X-13 constant torque control optimizes airflow by maintaining consistent CFM across varying static pressures. When diagnosing a failed blower, technicians should verify line voltage (208-230V) and 24V control signals to the 16-pin or 5-pin connectors before condemning the module. This Carrier motor control module is engineered for quick field swaps, utilizing two mounting bolts to secure the electronics to the motor's end cap. Replacing only the HK46ER230 motor module rather than the entire motor assembly reduces downtime and avoids the need for complex rescheduling or system reprogramming.
Key Benefits for Technicians:- Precise Airflow Control: Engineered as a 3/4 HP blower motor control to ensure the system meets its rated SEER and AFUE specifications.
- OEM Compatibility: Guaranteed fit for specific Carrier and Bryant models, eliminating the guesswork associated with universal aftermarket modules.
- Efficient Diagnostics: Designed for an easy ECM motor troubleshooting process, allowing for the isolation of electronic failure from mechanical motor issues.
- Plug-and-Play Installation: Factory-programmed speed taps ensure the X13 replacement module operates correctly immediately upon installation.
- High Torque Performance: Delivers the necessary power for Carrier HVAC motor repair in high-static environments.
How do I verify if the HK46ER230 control module is defective?
Perform a resistance check between the motor windings and the frame (should be >100k ohms) and then check phase-to-phase resistance. if the motor passes these tests but fails to turn with 24V at the speed taps and 230V mains, the Carrier HK46ER230 module is likely the culprit.
Can I use this module on a 1/2 HP or 1 HP motor?
No, this module is strictly calibrated for 3/4 HP ECM X-13 motors. Using a mismatched horsepower rating will lead to improper torque, overheating, and premature component failure.
Does this module require external programming?
This HVAC blower motor module comes pre-programmed from the factory with the specific torque profiles and speed taps required for compatible Carrier equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
