Carrier HK44ER234 Control

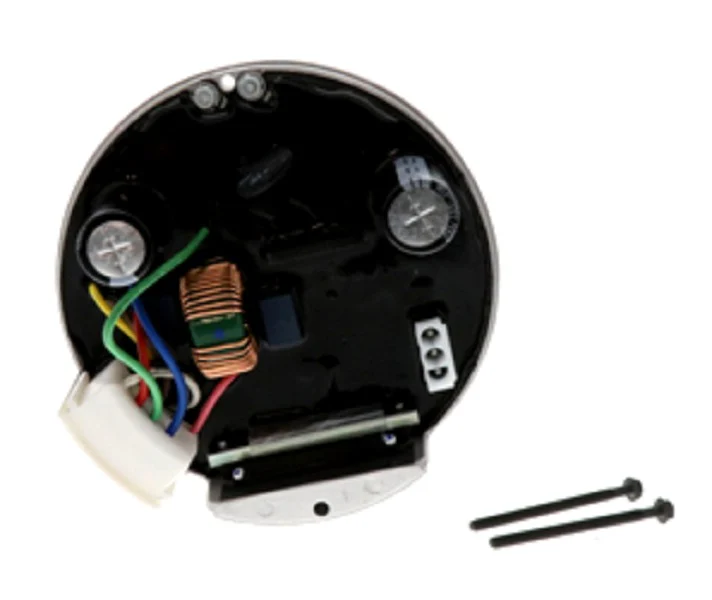

The Carrier HK44ER234 Motor Control Module is a critical OEM component designed for 1/2 HP ECM X-13 motors. This factory-authorized part ensures precise regulation of blower motor speeds to maintain optimal airflow and static pressure across the heat exchanger. Engineered for 208-240V single-phase applications, it is a direct drop-in replacement for failed modules in Carrier, Bryant, and Payne air handlers and furnaces. As a veteran technician knows, ECM motor troubleshooting often reveals a failed power stage in the module rather than a multi-tap motor failure. Replacing just the Carrier HK44ER234 restores HVAC system performance without the cost of a full motor assembly. This motor control 1/2HP module features advanced pulse width modulation (PWM) for high-efficiency operation and is designed to meet strict factory specifications for continuous duty. For a reliable repair, verify that the blower wheel is balanced and consider an inline surge protector to safeguard the HVAC replacement part from transient voltage spikes.
Key Benefits- OEM Compatibility: Specifically programmed for Carrier HK44ER234 1/2 HP X-13 motors, ensuring correct torque and RPM ramp-up profiles.
- Energy Efficiency: Leverages ECM technology to reduce power consumption compared to standard PSC motors.
- Simplified Installation: Direct-fit design with standard power and signal connectors for fast field replacement.
- System Protection: Integrated thermal management and fault detection to prevent secondary component damage.
Is the HK44ER234 compatible with all 1/2 HP motors?
No, this module is specifically programmed for ECM X-13 motor architectures. Always match the part number to your specific air handler model to ensure correct performance and airflow coefficients.
Do I need to replace the entire motor if the module fails?
Usually not. High-voltage spikes often damage the motor control module while the motor windings remain intact. Replacing the HK44ER234 is a cost-effective alternative to a full motor swap.
What are the signs of a failing motor control module?
Common indicators include the blower failing to start despite receiving a 24V signal, erratic fan speeds, or a "cogging" motion where the motor oscillates but cannot reach full rotation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $680.54
-65%$680.54
$238.19Carrier HK44ER234 Control
The Carrier HK44ER234 Motor Control Module is a critical OEM component designed for 1/2 HP ECM X-13 motors. This factory-authorized part ensures precise regulation of blower motor speeds to maintain optimal airflow and static pressure across the heat exchanger. Engineered for 208-240V single-phase applications, it is a direct drop-in replacement for failed modules in Carrier, Bryant, and Payne air handlers and furnaces. As a veteran technician knows, ECM motor troubleshooting often reveals a failed power stage in the module rather than a multi-tap motor failure. Replacing just the Carrier HK44ER234 restores HVAC system performance without the cost of a full motor assembly. This motor control 1/2HP module features advanced pulse width modulation (PWM) for high-efficiency operation and is designed to meet strict factory specifications for continuous duty. For a reliable repair, verify that the blower wheel is balanced and consider an inline surge protector to safeguard the HVAC replacement part from transient voltage spikes.
Key Benefits- OEM Compatibility: Specifically programmed for Carrier HK44ER234 1/2 HP X-13 motors, ensuring correct torque and RPM ramp-up profiles.
- Energy Efficiency: Leverages ECM technology to reduce power consumption compared to standard PSC motors.
- Simplified Installation: Direct-fit design with standard power and signal connectors for fast field replacement.
- System Protection: Integrated thermal management and fault detection to prevent secondary component damage.
Is the HK44ER234 compatible with all 1/2 HP motors?
No, this module is specifically programmed for ECM X-13 motor architectures. Always match the part number to your specific air handler model to ensure correct performance and airflow coefficients.
Do I need to replace the entire motor if the module fails?
Usually not. High-voltage spikes often damage the motor control module while the motor windings remain intact. Replacing the HK44ER234 is a cost-effective alternative to a full motor swap.
What are the signs of a failing motor control module?
Common indicators include the blower failing to start despite receiving a 24V signal, erratic fan speeds, or a "cogging" motion where the motor oscillates but cannot reach full rotation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
