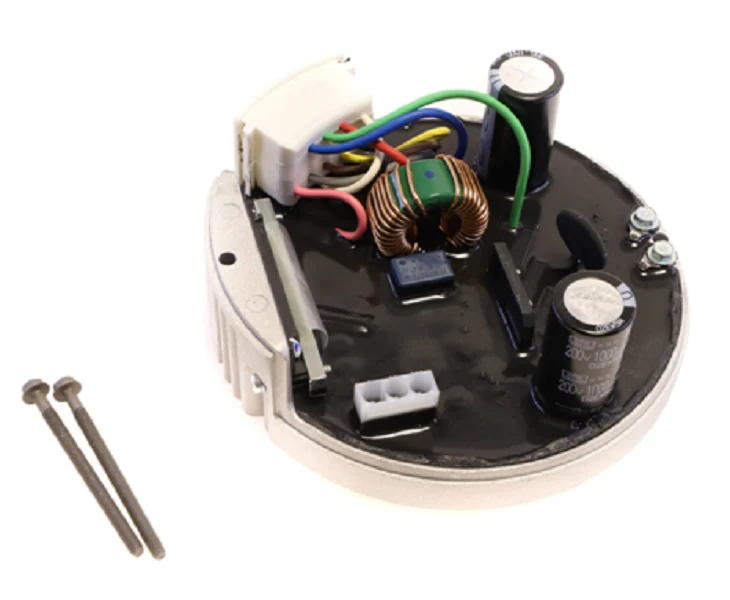

Carrier HK44ER221 ECM Module
The Carrier HK44ER221 ECM Module is a critical 1/2 HP replacement component for X-13 and Endura Pro blower motors found in high-efficiency Carrier HVAC systems. As a genuine OEM replacement part, this module serves as the primary motor control interface, managing speed taps and operational logic to maintain precise airflow across heat exchangers and coils. Designed for 208-230V or 115V applications (depending on system wiring), this ECM motor controller features pre-programmed torque and RPM parameters to ensure the blower operates within the manufacturer's performance curve. Utilizing an X-13 motor module like the HK44ER221 is essential for restoring variable-speed benefits, including humidity control and reduced energy consumption. Technicians should verify that the blower wheel rotates freely and check the motor windings for shorts to ground before replacing the module, as mechanical resistance is a primary contributor to control failure. Note that this Carrier HK44ER211 replacement serves as a direct upgrade to ensure system electrical integrity.
Notes
Item is Non Cancelable / Non Returnable
Key Benefits
- Broad Compatibility: Engineered as a direct OEM replacement part for Carrier, Bryant, and Payne air handlers and furnaces utilizing 1/2 HP X-13 style motors.
- Precision Airflow: Restores factory-calibrated speed taps to maintain static pressure balance and indoor air quality.
- Ease of Installation: Features standard harness connectors and dual-bolt mounting for rapid field replacement without removing the entire blower assembly.
- Optimized Efficiency: Regulates power consumption through advanced ECM technology, significantly lowering operational costs compared to standard PSC motors.
- Internal Protection: Integrated circuitry helps safeguard the motor from minor voltage fluctuations and thermal overload.
Common Questions
How do I confirm the module is failed rather than the motor?
Technicians should check for line voltage at the power harness and 24VAC signals at the speed taps. If the motor turns freely by hand and passes a phase-to-phase resistance test (typically under 20 ohms and balanced), but fails to oscillate or start with confirmed 24V inputs, the module is likely the point of failure.
Does this module require field programming?
The HK44ER221 comes pre-programmed with Carrier's specific software parameters. While it is a "drop-in" replacement for supported 1/2 HP models, you must verify that your specific unit model number matches the manufacturer's parts list to ensure the speed taps align with your tonnage and ductwork requirements.
What causes these modules to burn out?
Most HVAC blower motor modules fail due to transient voltage spikes or moisture intrusion. It is highly recommended to inspect the wiring harness for a proper drip loop and ensure that the blower wheel is clean and balanced to prevent excessive vibration from damaging the internal thermistor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
