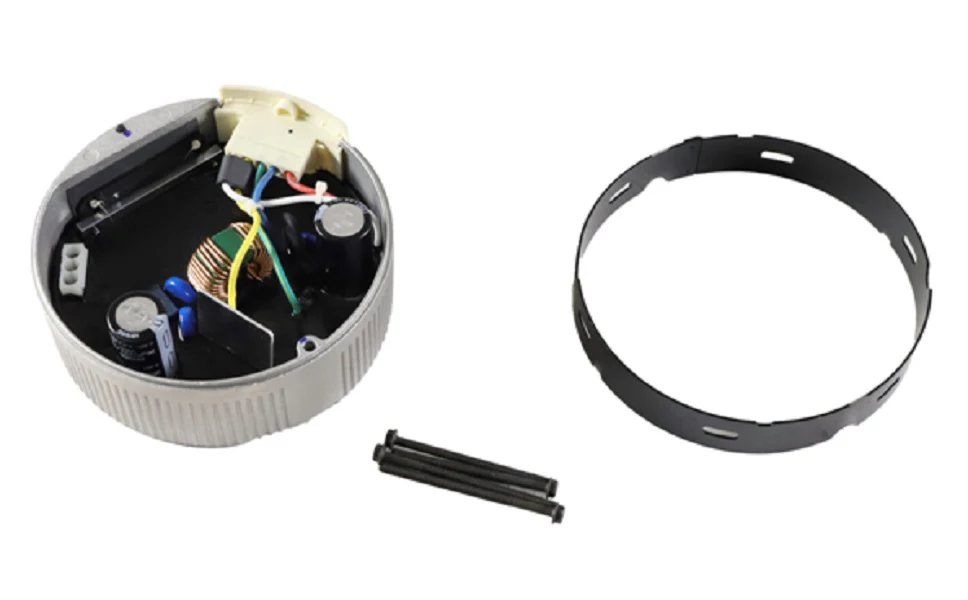

Carrier HK44ER121 Control

The Carrier HK44ER121 is a factory-authorized ECM Motor Control module engineered specifically for 1/2 HP blower motors in high-efficiency Carrier, Bryant, and Payne furnace and air handler assemblies. As an Eon 5.0 ECM MTR Control, this high-performance interface regulates the speed and torque of electronically commutated motors to maintain precise airflow across varying static pressures. This OEM replacement control board is a direct drop-in for technicians servicing X13 and Eon series motors, ensuring system communication remains intact without the need for field modifications or complex reprogramming. By processing low-voltage signals from the main furnace control, the HK44ER121 optimizes HVAC blower motor efficiency and significantly reduces energy consumption compared to standard induction motor setups.

Key Benefits:

• Direct OEM Compatibility: Specifically designed to replace factory ECM modules in Carrier and Bryant equipment, ensuring pin-to-pin alignment and reliable 120V/240V operation.
• Enhanced Efficiency: Utilizes Eon 5.0 technology to provide precise pulse-width modulation (PWM) for superior torque management and energy savings.
• Rugged Reliability: Built to withstand the thermal stress of high-static environments, preventing motor "locked rotor" faults and early component fatigue.
• Seamless Integration: Supports 1/2 HP motor specifications, facilitating smooth soft-starts and quiet operation in residential HVAC systems.

Common Questions:

• Does this board replace the entire motor? No, the HK44ER121 is the electronic control module. If your motor windings are intact but the fan fails to start after receiving 24V, replacing this module is the standard repair protocol.
• Is programming required for installation? This factory-authorized part comes pre-programmed for compatible 1/2 HP applications, allowing for a faster "plug and play" service call.
• How do I verify if my motor module is the source of failure? Conduct a "Go-No-Go" test by checking for 120VAC/230VAC at the power harness and 24VAC at the signal terminals. If power is present but the shaft does not rotate, the control module is likely compromised.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
