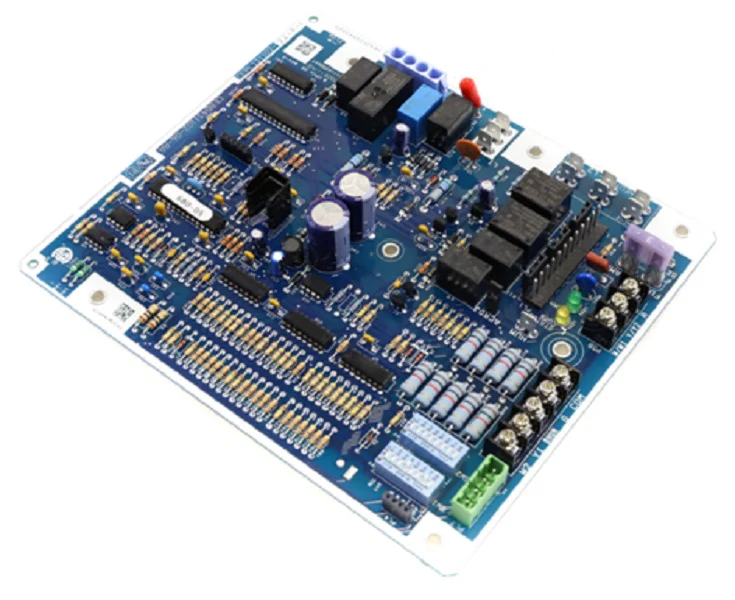

Carrier HK42FZ094 Control Board
The Carrier HK42FZ094 Control Board is a high-performance integrated furnace control (IFC) designed to manage the critical ignition, blower, and safety sequences within Carrier, Bryant, and Payne residential furnaces. As a genuine OEM replacement part, this board provides a verified solution for service technicians addressing intermittent heating failures or "no-heat" calls. This HVAC circuit board replacement integrates a 3-amp blade fuse for low-voltage circuit protection and features onboard diagnostic LEDs that simplify fault code interpretation in the field. Engineered for durability, it effectively replaces legacy part numbers including HK42FZ065, HK42FZ079, and HK42FZ070. By precisely regulating the inducer motor, gas valve, and blower schedules, the Carrier HK42FZ094 ensures optimal system combustion and thermal efficiency. The robust microprocessor architecture facilitates seamless communication across the 24V AC control circuit, maintaining stable operation even in high-demand heating cycles. For contractors, this direct-fit furnace board eliminates the compatibility risks associated with universal aftermarket alternatives.
Key Benefits- OEM Compatibility: Precision-engineered for exact fitment in specific Carrier, Bryant, and Payne furnace models.
- Simplified Diagnostics: Integrated status LEDs allow for rapid identification of specific system faults via clear flash codes.
- Enhanced Safety: Built-in 3-amp fuse protects the 24V transformer and control circuit from electrical shorts.
- Reliable Performance: Microprocessor-driven logic ensures accurate timing for inducer pre-purge and blower delay-off cycles.
What model furnaces does the HK42FZ094 replace?
This board replaces several legacy Carrier parts, including HK42FZ065, HK42FZ070, and HK42FZ079, ensuring a drop-in installation for many mid-efficiency and high-efficiency units.
Does this board work with communicating thermostats?
The HK42FZ094 is designed for conventional 24V thermostat wiring (R, W, Y, G, C) and may not support proprietary digital communication protocols found on every model; always verify via your unit’s specific wiring diagram.
How do I troubleshoot a suspected board failure?
Before replacing the board, check the 3-amp fuse for continuity and verify that 24V AC is present between the 'R' and 'C' terminals. If the status LED is completely dark while the system has power, internal board failure is likely.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
