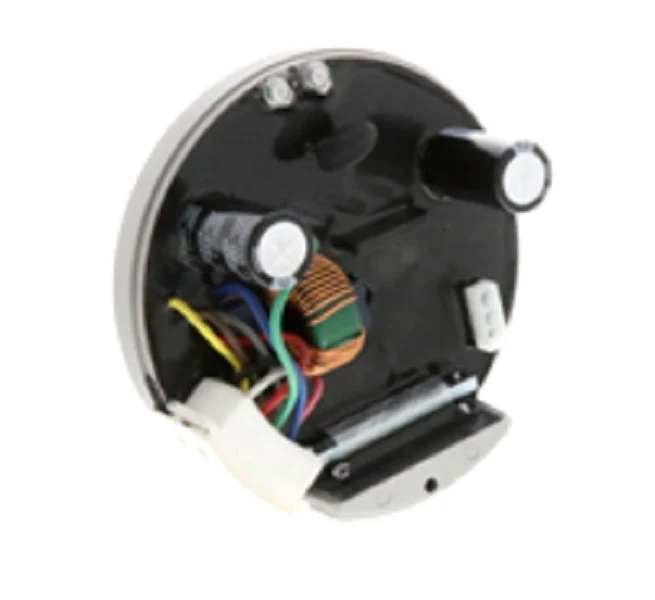

Carrier HK42ER238 Module
The Carrier HK42ER238 Module is a factory-authorized ECM X-13 Motor Control designed specifically for 1/3 HP constant torque brushless DC motors. As a direct OEM replacement motor module, this component manages the complex switching sequences required to maintain efficient airflow across varying static pressures in Carrier, Bryant, and Payne air handlers and furnaces. For technicians troubleshooting a blower motor not running, this module serves as the primary intelligence hub, converting standard high-voltage AC input into the pulse-width modulated signals that drive the high-efficiency ECM motor. Its constant torque programming ensures consistent CFM delivery, which is critical for maintaining heat exchanger integrity and preventing evaporator coil freeze-ups. By replacing only the HK42ER238 motor control rather than the entire assembly, contractors can restore system performance while ensuring the fan curve remains calibrated to original equipment manufacturer specifications.
Key Benefits- Optimized Energy Efficiency: Leverages ECM technology to significantly reduce watt consumption compared to standard PSC motors.
- Precision Airflow: Programmed for constant torque performance, ensuring the 1/3hp ECM-X-13 motor maintains proper ventilation despite ductwork restrictions.
- Seamless Integration: Genuine Factory Authorized Part ensures the pin connectors and mounting geometry align perfectly with existing blower housings.
- Quiet Operation: Advanced electronic commutation reduces electromagnetic noise and vibration during startup and high-speed operation.
Can I test this module without a specialized ECM tester?
While a dedicated tester is preferred, technicians can verify high-voltage power at the 5-pin connector and check for 24VAC signals at the 16-pin communication harness to determine if the HVAC blower motor module has failed.
What usually causes the HK42ER238 to fail prematurely?
The most common culprits are moisture infiltration from unsealed cabinets and voltage transients. We highly recommend installing an inline surge protector to shield the sensitive micro-electronics within the module.
Is this module compatible with permanent split capacitor (PSC) motors?
No. This control is specifically engineered for X-13 brushless DC motors. Attempting to use this with a PSC motor will result in immediate hardware failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $611.81
-65%$611.81
$214.13Carrier HK42ER238 Module
The Carrier HK42ER238 Module is a factory-authorized ECM X-13 Motor Control designed specifically for 1/3 HP constant torque brushless DC motors. As a direct OEM replacement motor module, this component manages the complex switching sequences required to maintain efficient airflow across varying static pressures in Carrier, Bryant, and Payne air handlers and furnaces. For technicians troubleshooting a blower motor not running, this module serves as the primary intelligence hub, converting standard high-voltage AC input into the pulse-width modulated signals that drive the high-efficiency ECM motor. Its constant torque programming ensures consistent CFM delivery, which is critical for maintaining heat exchanger integrity and preventing evaporator coil freeze-ups. By replacing only the HK42ER238 motor control rather than the entire assembly, contractors can restore system performance while ensuring the fan curve remains calibrated to original equipment manufacturer specifications.
Key Benefits- Optimized Energy Efficiency: Leverages ECM technology to significantly reduce watt consumption compared to standard PSC motors.
- Precision Airflow: Programmed for constant torque performance, ensuring the 1/3hp ECM-X-13 motor maintains proper ventilation despite ductwork restrictions.
- Seamless Integration: Genuine Factory Authorized Part ensures the pin connectors and mounting geometry align perfectly with existing blower housings.
- Quiet Operation: Advanced electronic commutation reduces electromagnetic noise and vibration during startup and high-speed operation.
Can I test this module without a specialized ECM tester?
While a dedicated tester is preferred, technicians can verify high-voltage power at the 5-pin connector and check for 24VAC signals at the 16-pin communication harness to determine if the HVAC blower motor module has failed.
What usually causes the HK42ER238 to fail prematurely?
The most common culprits are moisture infiltration from unsealed cabinets and voltage transients. We highly recommend installing an inline surge protector to shield the sensitive micro-electronics within the module.
Is this module compatible with permanent split capacitor (PSC) motors?
No. This control is specifically engineered for X-13 brushless DC motors. Attempting to use this with a PSC motor will result in immediate hardware failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
