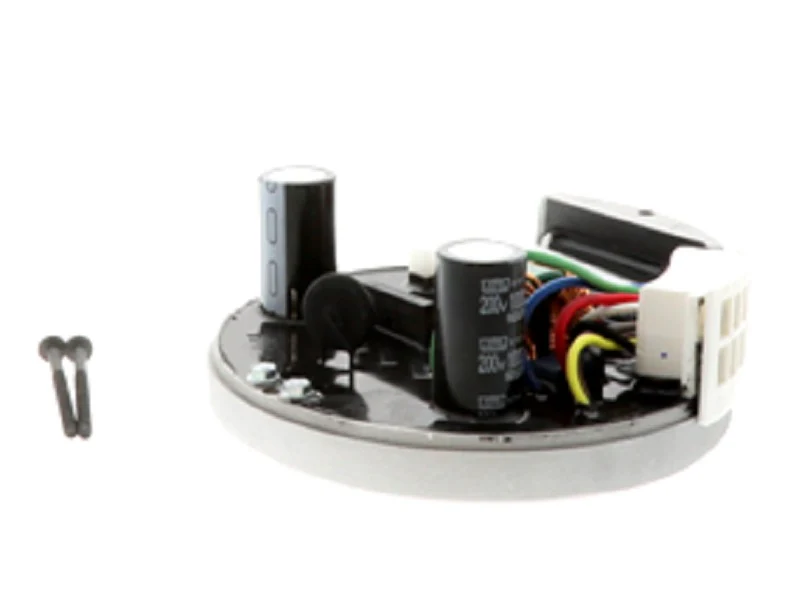

Carrier HK42ER228 Motor Module
The Carrier HK42ER228 is an OEM ECM X-13 Motor Module specifically engineered for 1/3 HP constant torque motors found in high-efficiency Carrier, Bryant, and Payne air handlers and furnaces. As a programmed power head replacement, this component manages the communication between the HVAC control board and the blower motor, translating 24V speed taps into precise brushless DC motor rotations. Designed to maintain airflow against varying static pressure, it ensures proper CFM delivery across the heat exchanger. This module utilizes high-grade internal capacitors and a robust bridge rectifier to handle voltage fluctuations and transient electrical loads common in residential split systems. When diagnosing a failed blower where the shaft rotates freely and windings show proper resistance, replacing this ECM interface module is the standard protocol for restoring system operation without the cost of a full motor assembly. Verify the programmed parameters match your specific model and serial number to ensure correct torque profiles and ramp-down timings.
Key Benefits- Direct OEM Match: Ensures exact electrical compatibility with existing Carrier X-13 motor frames without requiring wiring modifications.
- Constant Torque Performance: Maintains consistent airflow levels to improve cooling efficiency and heat exchanger longevity.
- Integrated Protection: Features internal thermal overload protection and surge suppression to prevent premature circuit failure.
- Ease of Installation: Two-bolt mounting design allows for rapid field replacement, reducing labor hours on the job site.
- Improved SEER Ratings: Efficient electronically commutated motor technology reduces overall power consumption compared to standard PSC motors.
Is the Carrier HK42ER228 pre-programmed?
Yes, this module comes pre-loaded with specific torque and airflow profiles calibrated for the listed Carrier and Bryant equipment models to ensure seamless integration.
Can I use this module to replace a 1/2 HP or 3/4 HP module?
No, this module is specifically rated for 1/3 HP ECM motors. Using an incorrectly rated module will result in improper airflow and potential motor burnout.
How do I verify if my motor failure is the module or the motor itself?
Technicians should check for 120/240V line voltage at the power plug and 24V signals at the speed taps. If power is present but the motor won't turn, use an ECM tester to isolate the module from the motor windings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $530.45
-65%$530.45
$185.66Carrier HK42ER228 Motor Module
The Carrier HK42ER228 is an OEM ECM X-13 Motor Module specifically engineered for 1/3 HP constant torque motors found in high-efficiency Carrier, Bryant, and Payne air handlers and furnaces. As a programmed power head replacement, this component manages the communication between the HVAC control board and the blower motor, translating 24V speed taps into precise brushless DC motor rotations. Designed to maintain airflow against varying static pressure, it ensures proper CFM delivery across the heat exchanger. This module utilizes high-grade internal capacitors and a robust bridge rectifier to handle voltage fluctuations and transient electrical loads common in residential split systems. When diagnosing a failed blower where the shaft rotates freely and windings show proper resistance, replacing this ECM interface module is the standard protocol for restoring system operation without the cost of a full motor assembly. Verify the programmed parameters match your specific model and serial number to ensure correct torque profiles and ramp-down timings.
Key Benefits- Direct OEM Match: Ensures exact electrical compatibility with existing Carrier X-13 motor frames without requiring wiring modifications.
- Constant Torque Performance: Maintains consistent airflow levels to improve cooling efficiency and heat exchanger longevity.
- Integrated Protection: Features internal thermal overload protection and surge suppression to prevent premature circuit failure.
- Ease of Installation: Two-bolt mounting design allows for rapid field replacement, reducing labor hours on the job site.
- Improved SEER Ratings: Efficient electronically commutated motor technology reduces overall power consumption compared to standard PSC motors.
Is the Carrier HK42ER228 pre-programmed?
Yes, this module comes pre-loaded with specific torque and airflow profiles calibrated for the listed Carrier and Bryant equipment models to ensure seamless integration.
Can I use this module to replace a 1/2 HP or 3/4 HP module?
No, this module is specifically rated for 1/3 HP ECM motors. Using an incorrectly rated module will result in improper airflow and potential motor burnout.
How do I verify if my motor failure is the module or the motor itself?
Technicians should check for 120/240V line voltage at the power plug and 24V signals at the speed taps. If power is present but the motor won't turn, use an ECM tester to isolate the module from the motor windings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
