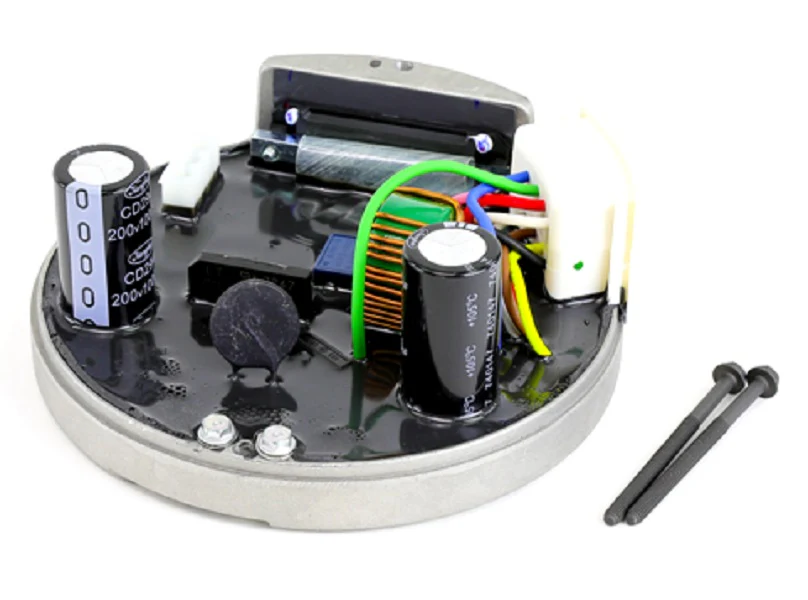

Carrier HK42ER223 Motor Module
The Carrier HK42ER223 is a genuine OEM ECM X-13 motor module designed for high-efficiency performance in 1/3 HP blower applications. As a direct replacement for Carrier, Bryant, and Payne air handlers and furnaces, this 1/3 HP motor module utilizes constant torque technology to maintain airflow across a wide range of external static pressures. Contractors often select the HK42ER223 motor control to restore precise multi-speed operation without replacing the entire motor, as these modules are common failure points due to power surges or moisture infiltration. This X13 replacement module features a 5-pin speed tap configuration and is factory-programmed to ensure seamless integration with the original motor windings. To protect the sensitive electronics in this HVAC blower motor module, technicians recommend using an inline surge protector. Proper ECM motor troubleshooting involves verifying 24V signals at the speed taps and confirming high voltage at the power harness before installing this replacement HK42ER223 module.
Key Benefits- Precise Airflow Control: Features programmed ECM X-13 constant torque logic for consistent CFM delivery.
- Efficient Power Management: Operates at 1/3 HP to optimize energy consumption in residential HVAC units.
- Direct OEM Fit: Engineered specifically for Carrier HK42ER223 motor compatibility, eliminating the need for universal programming.
- Rugged Enclosure: Designed to withstand the thermal demands and high-speed vibrations of a blower assembly.
- Cost-Effective Repair: Allows for the replacement of the control module only, preserving the functional motor hardware.
How do I know if I need to replace the module instead of the whole motor?
If the motor shaft spins freely by hand and the windings show proper resistance (typically less than 20 ohms), the failure is likely in the HK42ER223 motor module. Always check for a 24VAC signal from the control board to the speed taps; if voltage is present but the motor won't turn, the module is the primary suspect.
What causes these ECM modules to fail prematurely?
The most frequent causes are voltage spikes and poorly conditioned power. Installing a transient voltage surge suppressor can help shield the internal capacitors. Additionally, ensure the blower wheel is balanced, as excessive vibration can lead to mechanical stress on the module's solder joints.
Can this module be used with any 1/3 HP motor?
No, this is a programmed OEM replacement part. It is calibrated specifically for the Carrier HK42ER223 motor and should only be used with compatible Carrier, Bryant, and Payne models to ensure correct rotation and speed profiles.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
