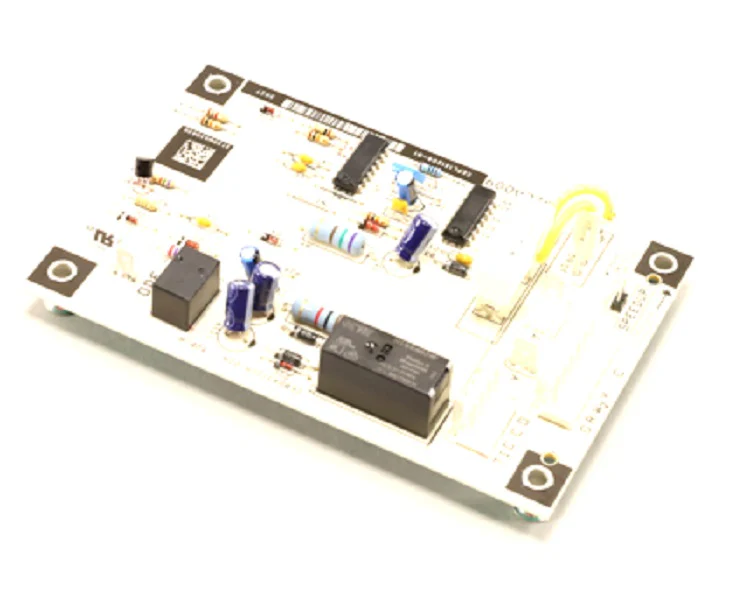

The Carrier HK32EA009 Defrost Control Board is a critical OEM replacement engineered for precise management of defrost cycles in Carrier, Bryant, and Payne heat pump systems. This solid-state control board monitors the outdoor coil temperature via the defrost thermostat and calculates compressor run time to initiate defrost only when necessary, preventing inefficient ice buildup. Designed for 24V control circuits, the HK32EA009 features field-selectable time intervals (30, 60, or 90 minutes) via jumper pins, allowing technicians to optimize performance based on local climate conditions. It includes a built-in short cycle protection timer to prevent compressor damage during rapid power fluctuations or thermostat transitions. This heat pump defrost board integrates seamlessly with existing wiring harnesses using standard 1/4-inch quick-connect terminals. This specific HK32EA009 control board is a direct replacement for various legacy defrost modules, ensuring full compatibility with your unit's logic for reversing valve operation and auxiliary heat strip activation during the defrost sequence.

Item is Non Cancelable / Non Returnable

Key Benefits:

• Optimized Efficiency: Precision logic ensures the defrost cycle runs only when the coil temperature drops below the set point, reducing unnecessary energy consumption.
• Field Adjustability: Selectable 30, 60, or 90-minute intervals allow for customized timing to match regional humidity and frost levels.
• System Protection: Integrated compressor delay prevents "short cycling," extending the operational life of the outdoor compressor.
• Seamless Integration: Genuine OEM part ensures terminal-to-terminal compatibility with Carrier heat pump wiring schematics.

Common Questions:

• What does the "Speed Up" jumper do? The "Speed Up" pins are for diagnostic testing; shorting them temporarily bypasses the standard timing logic to force a defrost cycle for troubleshooting.
• Will this fix my heat pump if the outdoor fan isn't running? If the fan stops specifically during a defrost call while the compressor remains active, the board is likely functioning correctly; however, if the fan fails to run during normal heating/cooling mode, this board should be tested alongside the fan relay and motor.
• How do I know if my current board is faulty? Symptoms of a failed defrost board include excessive ice accumulation on the outdoor coil that does not clear or a failure to energize the reversing valve and auxiliary heat during defrost.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
