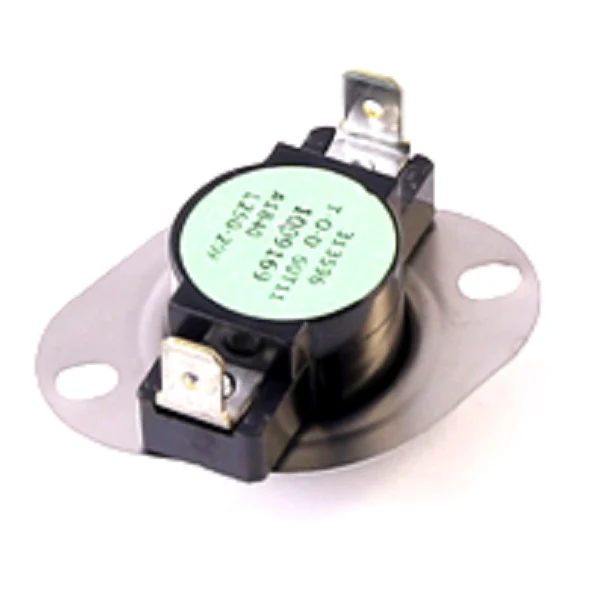

Carrier HH680354 Limit Switch
The Carrier HH680354 Limit Switch is a critical safety component designed for high-temperature monitoring in Carrier, Bryant, and Payne furnaces. This disc-style, normally closed circuit is engineered to open when the internal plenum temperature reaches 250°F, effectively breaking the electrical circuit to the gas valve to prevent heat exchanger damage or unsafe operating conditions. Once the temperature cools by the 20°F differential—dropping to approximately 230°F—the switch utilizes its automatic reset function to close the circuit, allowing for standard heating cycles to resume. As a genuine OEM replacement part, it ensures precise calibration for compatible air handlers and gas furnaces, maintaining the system's thermal protection integrity without the drift often seen in aftermarket alternatives.
Key Benefits:
- Precise Thermal Protection: Factory-calibrated to trip at exactly 250°F, protecting the heat exchanger from cracks and structural failure.
- Automatic Reset Functionality: Features a 20-degree differential that allows the system to cycle back on at 230°F once safe operating temperatures are restored.
- OEM Compatibility: A direct drop-in replacement for Carrier furnace parts, ensuring correct terminal alignment and mounting footprint for rapid field installation.
- System Diagnostics: Resolves common furnace issues such as short cycling or blowers running continuously due to a tripped or faulty limit control.
Common Questions:
How do I know if my Carrier limit switch is bad?
Technicians should test for continuity across the terminals while the switch is cool. If the switch shows an open circuit at room temperature, it is defective. Frequent furnace short cycling or the blower fan running non-stop are also primary indicators of a failed thermal limit switch.
What causes a 250F limit switch to trip frequently?
Repeated tripping usually points to airflow restrictions. Check for a clogged air filter, a dirty secondary heat exchanger, or an undersized return duct. If airflow is within spec and the switch still opens, the HH680354 may have weakened internal contacts and require replacement.
Can I use an HH680354 as a rollout switch?
No. While they look similar, this is a limit switch for plenum temperature. Rollout switches usually require a manual reset for safety reasons, whereas this part is designed to cycle automatically for high-limit air monitoring.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Carrier HH680354 Limit Switch
The Carrier HH680354 Limit Switch is a critical safety component designed for high-temperature monitoring in Carrier, Bryant, and Payne furnaces. This disc-style, normally closed circuit is engineered to open when the internal plenum temperature reaches 250°F, effectively breaking the electrical circuit to the gas valve to prevent heat exchanger damage or unsafe operating conditions. Once the temperature cools by the 20°F differential—dropping to approximately 230°F—the switch utilizes its automatic reset function to close the circuit, allowing for standard heating cycles to resume. As a genuine OEM replacement part, it ensures precise calibration for compatible air handlers and gas furnaces, maintaining the system's thermal protection integrity without the drift often seen in aftermarket alternatives.
Key Benefits:
- Precise Thermal Protection: Factory-calibrated to trip at exactly 250°F, protecting the heat exchanger from cracks and structural failure.
- Automatic Reset Functionality: Features a 20-degree differential that allows the system to cycle back on at 230°F once safe operating temperatures are restored.
- OEM Compatibility: A direct drop-in replacement for Carrier furnace parts, ensuring correct terminal alignment and mounting footprint for rapid field installation.
- System Diagnostics: Resolves common furnace issues such as short cycling or blowers running continuously due to a tripped or faulty limit control.
Common Questions:
How do I know if my Carrier limit switch is bad?
Technicians should test for continuity across the terminals while the switch is cool. If the switch shows an open circuit at room temperature, it is defective. Frequent furnace short cycling or the blower fan running non-stop are also primary indicators of a failed thermal limit switch.
What causes a 250F limit switch to trip frequently?
Repeated tripping usually points to airflow restrictions. Check for a clogged air filter, a dirty secondary heat exchanger, or an undersized return duct. If airflow is within spec and the switch still opens, the HH680354 may have weakened internal contacts and require replacement.
Can I use an HH680354 as a rollout switch?
No. While they look similar, this is a limit switch for plenum temperature. Rollout switches usually require a manual reset for safety reasons, whereas this part is designed to cycle automatically for high-limit air monitoring.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
