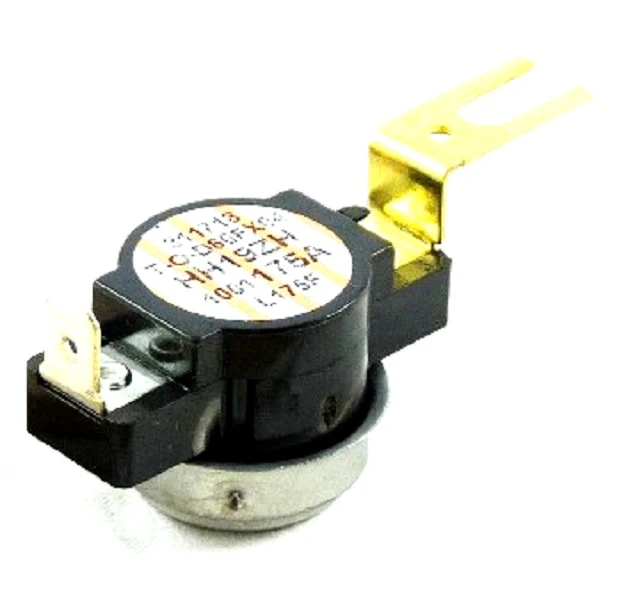

Carrier HH19ZH175 Limit Switch
As a field tech, you know that a failed safety circuit is the fastest way to a no-heat call. The Carrier HH19ZH175 is a critical furnace high limit switch designed to protect the heat exchanger from thermal stress. This 175F limit switch features a normally closed (CO) configuration, meaning it stays shut during standard operation and opens the circuit at its 175-degree setpoint to kill the gas valve or heating elements. This specific HH19ZH175 Carrier part is an auto-reset limit switch, allowing the system to resume normal operation once temperatures drop back to safe levels without manual intervention. For any contractor servicing Carrier, Bryant, or Payne units, having this OEM HVAC replacement part on the truck is essential for resolving short-cycling or thermal cutout issues in residential air handlers and furnaces.
Key Benefits- Precise Thermal Protection: Opens at exactly 175°F to ensure the heat exchanger does not exceed safe operating parameters.
- Automatic Reset Logic: Eliminates unnecessary service callbacks by re-closing the circuit once the plenum cools.
- Direct OEM Compatibility: Engineered specifically for Carrier-family equipment, ensuring correct mounting and terminal alignment.
- Safety Compliance: Maintains the UL safety rating of the original equipment by replacing failed components with factory-spec parts.
How do I know if my HH19ZH175 limit switch is bad?
If the furnace blower runs continuously while the burners refuse to ignite, or if you find an open circuit across the terminals when the unit is cool, the switch has likely failed in the open position. Use a multimeter to check for continuity.
What causes this limit switch to trip frequently?
Frequent tripping is usually a symptom of restricted airflow. Check for a dirty air filter, blocked return air ducts, or a failing blower motor before assuming the switch itself is defective.
Can I bypass this switch for testing?
While jumping the switch can confirm a diagnostic theory, never leave a system running with a bypassed safety. This switch is vital for preventing fire hazards and heat exchanger cracks.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
