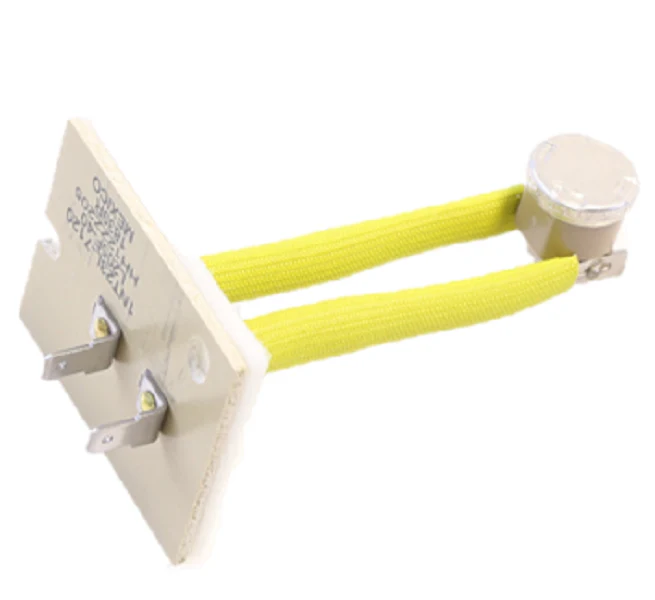

Carrier HH12ZZ205 Limit Switch
The Carrier HH12ZZ205 Limit Switch is a critical OEM safety component designed for high-limit temperature monitoring in residential and light commercial furnaces and packaged units. As a veteran-preferred replacement part for Carrier, Bryant, and Payne systems, this switch features a precise 205-degree set point with a 40-degree differential. Operating as a normally closed (NC) control, it opens the electrical circuit upon reaching its thermal threshold to prevent heat exchanger damage and hazardous overheating conditions. This L205-40 limit switch utilizes an automatic reset mechanism, allowing the system to resume operation once the internal temperature drops to 165°F. With a standard 3-inch insertion length and robust construction, the HH12ZZ205 ensures exact fitment and reliable performance within the 24V control circuit. Choosing a genuine Carrier furnace part eliminates the diagnostic uncertainty associated with universal aftermarket alternatives, ensuring that your equipment remains within its original safety specifications and maintains optimal airflow monitoring.
Key Benefits:- Precise Safety Calibration: Fixed 205°F open temperature ensures the furnace shuts down before high-limit conditions cause structural damage.
- Automatic Reset Logic: Resets at 165°F (40°F differential), supporting continuous HVAC operation without manual technician intervention after a temporary overheat.
- Broad System Compatibility: Engineered specifically for Carrier, Bryant, and Payne furnace models, including popular 58/59 series units.
- Durable OEM Construction: Built to withstand the harsh environments of the heat exchanger vestibule, offering superior electrical longevity compared to generic switches.
- Streamlined Installation: Direct HH12ZZ205 replacement for existing L205-40F controls, utilizing standard spade connectors for fast field swaps.
- What causes this limit switch to trip repeatedly? Frequent tripping is usually a symptom of restricted airflow. Check for a dirty air filter, blocked return grilles, or a failing blower motor.
- How do I test the HH12ZZ205 with a multimeter? With the furnace powered off, disconnect the leads and check for continuity. The switch should be closed (zero ohms) at room temperature. If it is open while cool, it has failed and requires replacement.
- Will this fix Carrier Error Code 33 or 13? Yes, these codes typically indicate a limit circuit fault. Replacing a faulty HH12ZZ205 often resolves these lockouts if the switch is failing to close or staying open due to thermal fatigue.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $33.64
-65%$33.64
$11.77Carrier HH12ZZ205 Limit Switch
The Carrier HH12ZZ205 Limit Switch is a critical OEM safety component designed for high-limit temperature monitoring in residential and light commercial furnaces and packaged units. As a veteran-preferred replacement part for Carrier, Bryant, and Payne systems, this switch features a precise 205-degree set point with a 40-degree differential. Operating as a normally closed (NC) control, it opens the electrical circuit upon reaching its thermal threshold to prevent heat exchanger damage and hazardous overheating conditions. This L205-40 limit switch utilizes an automatic reset mechanism, allowing the system to resume operation once the internal temperature drops to 165°F. With a standard 3-inch insertion length and robust construction, the HH12ZZ205 ensures exact fitment and reliable performance within the 24V control circuit. Choosing a genuine Carrier furnace part eliminates the diagnostic uncertainty associated with universal aftermarket alternatives, ensuring that your equipment remains within its original safety specifications and maintains optimal airflow monitoring.
Key Benefits:- Precise Safety Calibration: Fixed 205°F open temperature ensures the furnace shuts down before high-limit conditions cause structural damage.
- Automatic Reset Logic: Resets at 165°F (40°F differential), supporting continuous HVAC operation without manual technician intervention after a temporary overheat.
- Broad System Compatibility: Engineered specifically for Carrier, Bryant, and Payne furnace models, including popular 58/59 series units.
- Durable OEM Construction: Built to withstand the harsh environments of the heat exchanger vestibule, offering superior electrical longevity compared to generic switches.
- Streamlined Installation: Direct HH12ZZ205 replacement for existing L205-40F controls, utilizing standard spade connectors for fast field swaps.
- What causes this limit switch to trip repeatedly? Frequent tripping is usually a symptom of restricted airflow. Check for a dirty air filter, blocked return grilles, or a failing blower motor.
- How do I test the HH12ZZ205 with a multimeter? With the furnace powered off, disconnect the leads and check for continuity. The switch should be closed (zero ohms) at room temperature. If it is open while cool, it has failed and requires replacement.
- Will this fix Carrier Error Code 33 or 13? Yes, these codes typically indicate a limit circuit fault. Replacing a faulty HH12ZZ205 often resolves these lockouts if the switch is failing to close or staying open due to thermal fatigue.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
