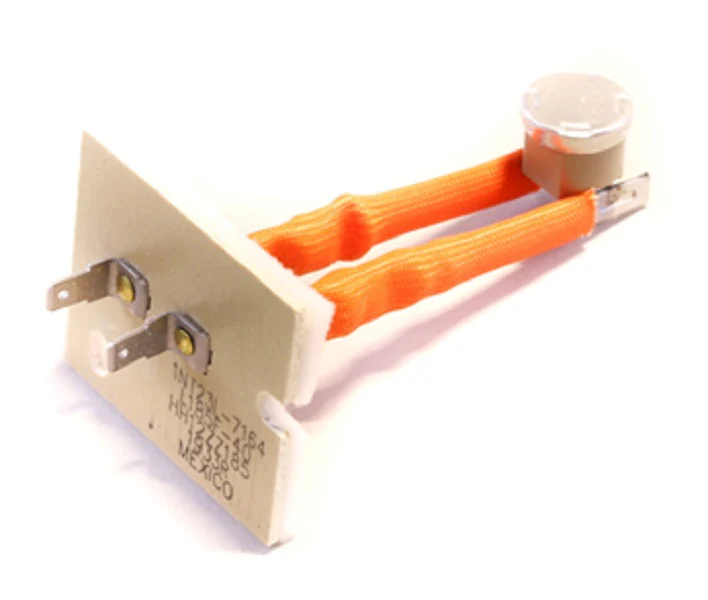

Carrier HH12ZZ185 Limit Switch
The Carrier HH12ZZ185 Limit Switch (part number L185F-40) is a critical OEM HVAC replacement part designed for high-limit thermal protection in furnace and air handling units. This normally closed (NC) switch functions as a primary safety mechanism, monitoring internal temperatures to prevent heat exchanger damage. It features a fixed set point that opens the electrical circuit when temperatures reach 185°F and automatically resets once the system cools to 145°F. Engineered for long-term reliability in demanding environments, this automatic reset limit switch is compatible with various 59SC, 59SP, and 912SC series units from Carrier, Bryant, and Payne. Technical field evaluations indicate a high mechanical travel life of up to 1,000,000 cycles. For contractors, the HH12ZZ185 ensures precise furnace temperature regulation and helps mitigate short-cycling issues caused by restricted airflow or failing blower motors.
Key Benefits- Precise Thermal Protection: Factory-calibrated to open at 185°F for immediate system shutdown during overheat conditions.
- Automatic Reset Functionality: Closes the circuit once temperatures drop to 145°F, allowing for standard operation without manual intervention.
- Universal Brand Compatibility: Seamlessly integrates with Carrier, Bryant, and Payne residential and commercial heating systems.
- Durable Technical Specs: Rated for 10A at 120VAC and 6V at 240VAC, featuring a 3-inch insertion length for accurate sensing in the airflow stream.
What causes a Carrier HH12ZZ185 to trip frequently?
Repeated tripping is usually indicative of restricted airflow. Check for a clogged air filter, blocked return vents, or a failing blower motor that cannot move enough CFM across the heat exchanger.
Is the L185F-40 a direct replacement for other limit switches?
This switch is an OEM factory authorized part specifically designed for 185-degree limits with a 40-degree differential. It should only be used where the original part number or technical thermal ratings match.
How do I test if this limit switch is defective?
Technicians should check for continuity across the terminals. If the switch is cool and shows an open circuit (OL on a multimeter), the internal contacts have failed and the unit requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $36.23
-65%$36.23
$12.68Carrier HH12ZZ185 Limit Switch
The Carrier HH12ZZ185 Limit Switch (part number L185F-40) is a critical OEM HVAC replacement part designed for high-limit thermal protection in furnace and air handling units. This normally closed (NC) switch functions as a primary safety mechanism, monitoring internal temperatures to prevent heat exchanger damage. It features a fixed set point that opens the electrical circuit when temperatures reach 185°F and automatically resets once the system cools to 145°F. Engineered for long-term reliability in demanding environments, this automatic reset limit switch is compatible with various 59SC, 59SP, and 912SC series units from Carrier, Bryant, and Payne. Technical field evaluations indicate a high mechanical travel life of up to 1,000,000 cycles. For contractors, the HH12ZZ185 ensures precise furnace temperature regulation and helps mitigate short-cycling issues caused by restricted airflow or failing blower motors.
Key Benefits- Precise Thermal Protection: Factory-calibrated to open at 185°F for immediate system shutdown during overheat conditions.
- Automatic Reset Functionality: Closes the circuit once temperatures drop to 145°F, allowing for standard operation without manual intervention.
- Universal Brand Compatibility: Seamlessly integrates with Carrier, Bryant, and Payne residential and commercial heating systems.
- Durable Technical Specs: Rated for 10A at 120VAC and 6V at 240VAC, featuring a 3-inch insertion length for accurate sensing in the airflow stream.
What causes a Carrier HH12ZZ185 to trip frequently?
Repeated tripping is usually indicative of restricted airflow. Check for a clogged air filter, blocked return vents, or a failing blower motor that cannot move enough CFM across the heat exchanger.
Is the L185F-40 a direct replacement for other limit switches?
This switch is an OEM factory authorized part specifically designed for 185-degree limits with a 40-degree differential. It should only be used where the original part number or technical thermal ratings match.
How do I test if this limit switch is defective?
Technicians should check for continuity across the terminals. If the switch is cool and shows an open circuit (OL on a multimeter), the internal contacts have failed and the unit requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
