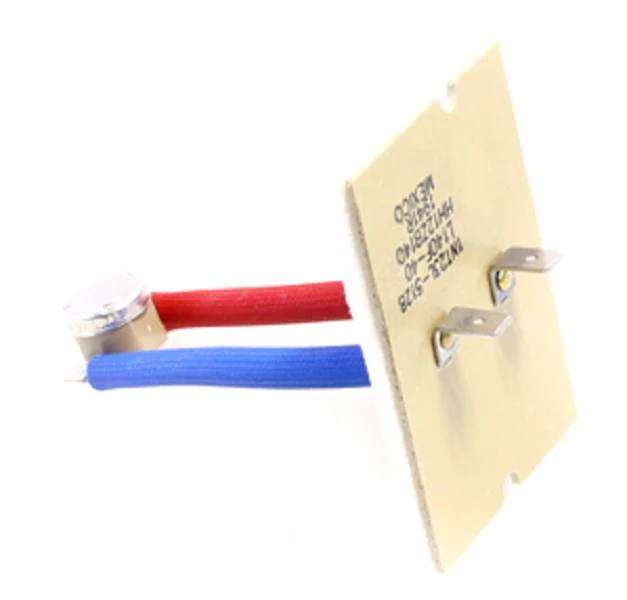

Carrier HH12ZB140 Limit Switch
Maintain peak safety and performance in your rooftop or residential furnace systems with the Carrier HH12ZB140 Limit Switch. This genuine OEM HVAC replacement part is a factory-authorized L140F-40 limit switch, specifically engineered for high-limit protection in Carrier, Bryant, and Payne air handlers and package units. As an auto-reset limit switch with a SPST (Single Pole Single Throw) configuration, it is designed to interrupt the heating circuit when internal temperatures exceed the 140°F threshold. Once the system cools to approximately 40°F, the switch automatically resets, allowing for continued operation without manual intervention. Constructed for durability and precise HVAC safety switch actuation, the HH12ZB140 ensures your equipment remains within its thermal design parameters, preventing heat exchanger damage and hazardous operating conditions. Its compact 3-inch profile and Carrier HH12ZB140 specifications make it a direct-drop replacement for faulty furnace limit switches in models like the 48PGLC and 50 series.
Key Benefits for Contractors- Precise Thermal Protection: Engineered for a strict 140°F cutout and a 40°F reset differential to protect vital system components.
- Reliable OEM Fit: Eliminates the need for field modifications, fitting seamlessly into existing Carrier HVAC furnace mounting brackets.
- Efficient SPST Logic: Simplifies troubleshooting by providing a clear open/closed state for the safety loop.
- Automated Reset: Reduces unnecessary service calls for nuisance trips by resetting once the unit returns to safe temperatures.
What causes a Carrier HH12ZB140 to trip?
Most trips are caused by restricted airflow, such as a clogged filter, a failing blower motor, or undersized ductwork, which elevates internal temperatures above the 140°F limit.
How do I test this limit switch for continuity?
With the power off and the part at room temperature, use a multimeter set to ohms. Since this is a normally closed (NC) switch, you should see 0 ohms; an open reading indicates a failed component.
Can I use an HH12ZB140 as a universal replacement?
No. You must match the specific temperature rating and reset type. Installing a switch with a higher limit can lead to equipment failure or unsafe conditions.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
