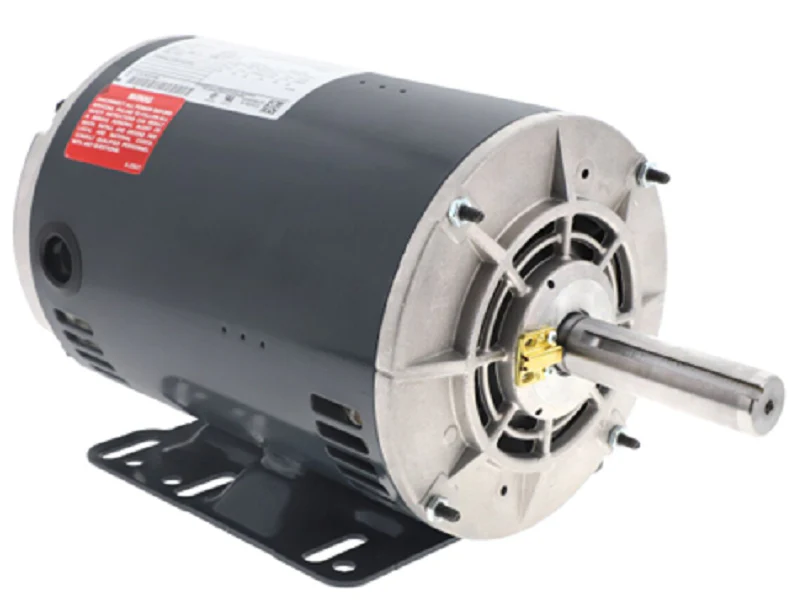

Carrier HD58FE654 Motor
The Carrier HD58FE654 Motor is a high-performance three-phase HVAC motor engineered for heavy-duty commercial and industrial applications. As a Carrier Factory Authorized Part, this 2.9 HP PSC motor provides direct-fit compatibility, eliminating the mounting headaches often associated with universal replacements. Operating at 1725 RPM, it is designed for 208-230/460V systems, drawing 7.8A at full load. The 56HZ frame size and rigid mounting base ensure a stable, vibration-free installation, while the 7/8-inch shaft diameter fits standard blower and fan configurations. Built with ball bearings and a reversible rotation feature, this motor allows for field adjustment to match specific airflow requirements. Whether you are performing a Carrier motor replacement or a system overhaul, this OEM unit ensures the specific torque and thermal protection curves required to maintain the original HVAC motor specifications and efficiency ratings of your equipment.
Technical Benefits for Contractors:
- Multi-Voltage Flexibility: Supports 208-230/460 VAC 3-phase power, reducing inventory needs for different job sites.
- Industrial Build Quality: Features a 56HZ frame with ball bearings for high-duty cycle reliability in demanding environments.
- Standardized Fit: 0.875" shaft diameter and 3 1/8" shaft length ensure compatibility with OEM pulleys and couplings.
- Reversible Rotation: Field-adjustable rotation simplifies HVAC blower motor or condenser fan integration.
- Certified Safety: CSA Listed and manufactured to meet rigorous OEM engineering standards.
Common Installation Questions:
Is the HD58FE654 a suitable replacement for other 56-frame motors?
While the 56HZ frame is a standard footprint, the 2.9 HP rating and 208-230/460V three-phase requirement are specific. Always verify the amperage draw and shaft dimensions before substituting this for a general-purpose motor.
Can this motor be used in outdoor condenser units?
Yes, if the original equipment specifications call for a rigid mount 1725 RPM motor. Its reversible rotation makes it adaptable for various fan blade pitches.
What is the standard rotation for this model?
The motor is shipped as reversible rotation, though CCW (Counter-Clockwise) is the standard factory setting. It can be easily reconfigured during installation to meet your specific airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,992.14
-65%$1,992.14
$697.25Carrier HD58FE654 Motor
The Carrier HD58FE654 Motor is a high-performance three-phase HVAC motor engineered for heavy-duty commercial and industrial applications. As a Carrier Factory Authorized Part, this 2.9 HP PSC motor provides direct-fit compatibility, eliminating the mounting headaches often associated with universal replacements. Operating at 1725 RPM, it is designed for 208-230/460V systems, drawing 7.8A at full load. The 56HZ frame size and rigid mounting base ensure a stable, vibration-free installation, while the 7/8-inch shaft diameter fits standard blower and fan configurations. Built with ball bearings and a reversible rotation feature, this motor allows for field adjustment to match specific airflow requirements. Whether you are performing a Carrier motor replacement or a system overhaul, this OEM unit ensures the specific torque and thermal protection curves required to maintain the original HVAC motor specifications and efficiency ratings of your equipment.
Technical Benefits for Contractors:
- Multi-Voltage Flexibility: Supports 208-230/460 VAC 3-phase power, reducing inventory needs for different job sites.
- Industrial Build Quality: Features a 56HZ frame with ball bearings for high-duty cycle reliability in demanding environments.
- Standardized Fit: 0.875" shaft diameter and 3 1/8" shaft length ensure compatibility with OEM pulleys and couplings.
- Reversible Rotation: Field-adjustable rotation simplifies HVAC blower motor or condenser fan integration.
- Certified Safety: CSA Listed and manufactured to meet rigorous OEM engineering standards.
Common Installation Questions:
Is the HD58FE654 a suitable replacement for other 56-frame motors?
While the 56HZ frame is a standard footprint, the 2.9 HP rating and 208-230/460V three-phase requirement are specific. Always verify the amperage draw and shaft dimensions before substituting this for a general-purpose motor.
Can this motor be used in outdoor condenser units?
Yes, if the original equipment specifications call for a rigid mount 1725 RPM motor. Its reversible rotation makes it adaptable for various fan blade pitches.
What is the standard rotation for this model?
The motor is shipped as reversible rotation, though CCW (Counter-Clockwise) is the standard factory setting. It can be easily reconfigured during installation to meet your specific airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
