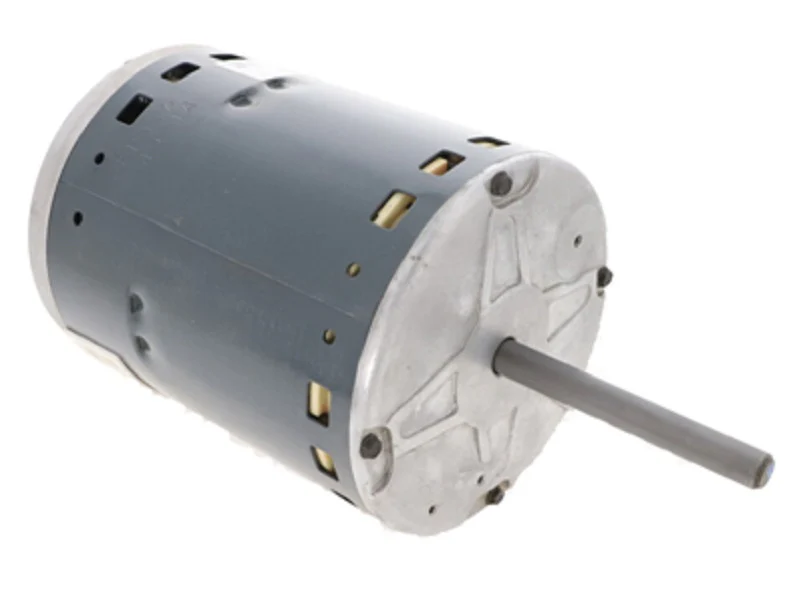

Carrier HD52AR267 Motor
The Carrier HD52AR267 is a high-efficiency ECM Motor designed specifically for Carrier, Bryant, and Payne air handlers and furnaces requiring a 1 HP X13 motor replacement. Operating on 208-230V at 1050 RPM, this 1 phase constant torque motor utilizes a programmed electronic control module to maintain optimal airflow across varying static pressures. As a direct OEM replacement, it ensures the blower wheel achieves the precise CFM required by the heat exchanger, preventing premature component failure. This brushless DC motor features a NEMA 48 frame and is engineered for high-duty cycles common in residential and light commercial HVAC applications. Replacing a failed induction motor with this X13 blower motor maintains the original SEER ratings of the equipment while reducing electrical consumption and decibel levels during operation. This unit integrates seamlessly with existing wiring harnesses, requiring no field modifications to the control board or mounting brackets.
Key Benefits
- Factory Programmed: Pre-loaded with Carrier-specific torque curves to ensure exact airflow performance and system balancing.
- High Torque Efficiency: The ECM technology provides superior efficiency compared to standard PSC motors, reducing energy draw.
- Enhanced Reliability: Ball-bearing construction and encapsulated electronics protect against moisture and vibration in the blower housing.
- Simplified Installation: Direct OEM replacement motor ensures compatibility with current mounting legs and harness connectors.
Common Questions
Is the control module included with the Carrier HD52AR267?
Yes, this is a complete ECM motor and module assembly, factory-programmed for specific Carrier-family air handlers.
Can I use this motor to replace a standard PSC motor?
No, this X13 blower motor is a constant torque ECM and requires specific control signals and wiring different from standard induction motors.
What causes an X13 motor to fail prematurely?
High static pressure due to restricted ductwork or dirty filters is the primary cause of HVAC blower motor failure, as it forces the module to work harder to maintain RPM.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
