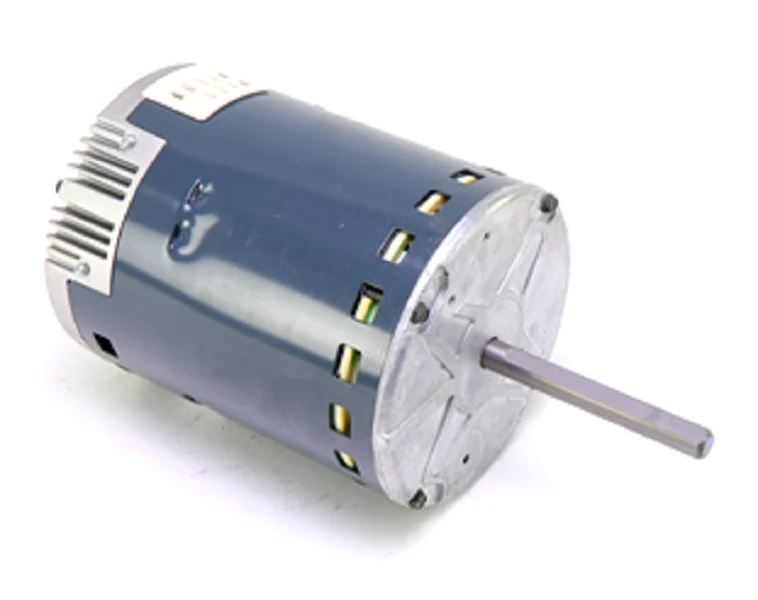

Carrier HD52AE136 Motor
The Carrier HD52AE136 is a high-efficiency OEM replacement motor designed specifically for Carrier, Bryant, and Payne residential HVAC systems. As a 1 HP, ECM X13 blower motor, it operates on a 208/230V single-phase power supply at a constant 1050 RPM. This 48-frame motor features a CWLE (Clockwise Lead End) rotation and is engineered to provide precise airflow across varying static pressures, ensuring optimal heat exchange and system efficiency. Built with an open air over (OAO) enclosure and robust ball bearings, the Carrier 1HP motor is a drop-in solution for technicians looking to restore factory-spec performance. This HVAC blower motor eliminates the need for complex field programming, utilizing standard speed taps for a direct plug-and-play installation. By matching the original equipment’s electrical characteristics and physical dimensions, the HD52AE136 maintains the integrity of the air handler's CFM delivery and overall climate control accuracy.
Key Benefits
- Factory-Authorized Performance: Ensures exact fit and function for Carrier-family air handlers and furnaces without mounting modifications.
- High-Efficiency ECM Technology: The X13 brushless DC motor design reduces energy consumption compared to standard PSC motors while maintaining consistent torque.
- Simplified Wiring: Features integrated electronics and pre-configured speed taps for a fast HVAC motor replacement process.
- Durable Construction: Heavy-duty ball bearings and 48FR NEMA frame housing provide reliable operation in demanding indoor environments.
- OEM Airflow Precision: Designed to meet specific static pressure requirements, protecting the heat exchanger and evaporator coil from airflow-related issues.
Common Questions
Is the HD52AE136 a direct replacement for my older PSC motor?
This is an ECM X13 motor and is intended as a direct replacement for units originally equipped with this specific OEM part number. If you are upgrading from a PSC motor, additional wiring and control board modifications may be required.
Does this motor require external programming before installation?
No, this Carrier blower motor comes pre-programmed from the factory with the necessary torque and speed parameters for compatible HVAC models.
What does the CWLE rotation designation mean for my installation?
CWLE stands for Clockwise Lead End rotation. It is critical to verify that your existing fan wheel and housing orientation match this rotation to ensure proper static pressure and air delivery.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
