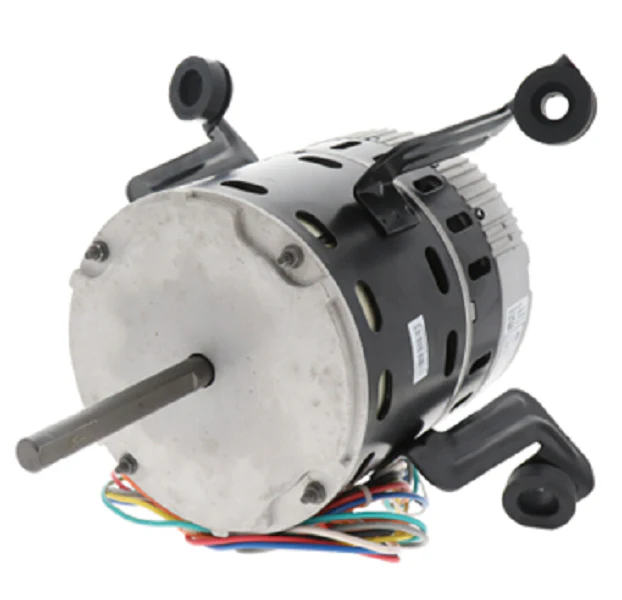

Carrier HD46MQ135 Blower Motor
For service technicians requiring a high-performance replacement in Carrier air handlers and furnaces, the Carrier HD46MQ135 Blower Motor provides a precise OEM fit and 3/4 HP output. As an Electronically Commutated Motor (ECM), this unit is engineered to maintain constant airflow against varying static pressures, ensuring the system operates within its design parameters. Running on 115-120V with a standard 1050 RPM rating, the motor features a 1/2-inch shaft diameter and a 4-7/8 inch shaft length, making it a direct drop-in for specific Carrier replacement motor applications.
The HD46MQ135 utilizes integrated control logic to regulate speed and torque, significantly reducing energy consumption compared to traditional PSC motors. For contractors, installing this furnace blower motor replacement ensures that the original system's SEER and HSPF ratings are preserved. The brushless DC motor design minimizes internal friction, leading to cooler operational temperatures and quieter decibel levels during startup and high-demand cycles. Always verify the manufacturer part number (ZWK702D0556401) and pin configuration before field installation.
Key Benefits
- OEM Precision: Genuine Carrier HD46MQ135 part ensures full compatibility with factory control boards and mounting brackets.
- Enhanced Efficiency: Energy-efficient 3/4 HP ECM motor technology reduces utility costs by optimizing air distribution.
- Robust Build: Designed for continuous operation in variable-speed systems, providing better humidity control and filtration.
- Quiet Operation: Advanced electronic commutation reduces electrical noise and mechanical vibration during use.
Common Questions
How do I confirm if my Carrier furnace requires the HD46MQ135?
Contrast the part number on your existing motor’s nameplate with the HD46MQ135 or the Broad Ocean manufacturer number ZWK702D0556401. This motor is specific to 120V 1-phase systems.
Can I use a standard PSC motor to replace this ECM blower?
No. ECM motors like the HD46MQ135 are controlled via low-velocity communication signals from the furnace control board. A standard PSC motor lacks the internal inverter required to translate these signals.
What is the rotation direction for this replacement motor?
The Carrier HD46MQ135 is typically rated for CCW (Counter-Clockwise) rotation, which is standard for most residential blower motor applications in this frame size.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
