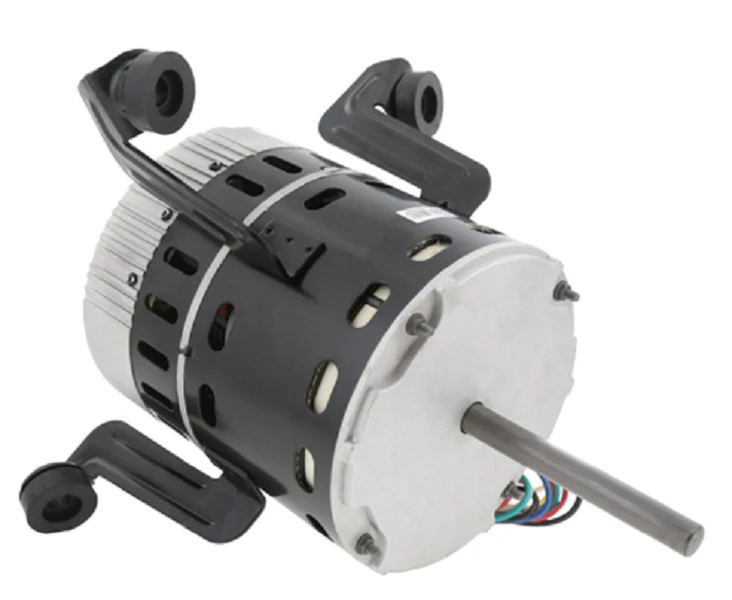

Carrier HD46MQ133 Blower Motor
The Carrier HD46MQ133 Blower Motor is a professional-grade ECM (Electronically Commutated Motor) designed for precise performance in high-efficiency residential and light commercial HVAC systems. This 3/4 HP HVAC replacement motor is a Factory Authorized Part, ensuring exact 1:1 compatibility with original equipment. Built on a NEMA 48 frame, it features ball bearings and an S1 continuous duty rating, providing reliable airflow under heavy static pressure. This 115V/120V single-phase blower motor operates at 1,050 RPM with a CCW (Counterclockwise) rotation, making it the standard choice for technicians seeking to restore system factory specifications. By utilizing advanced ECM technology over traditional PSC motors, this unit offers significant energy savings and quieter operation, maintaining the integrity of the original air handler or furnace airflow profile.
Key Benefits for Technicians:
- High-Efficiency ECM Technology: Reduces power consumption while providing consistent torque and airflow control.
- Factory Authorized Quality: Eliminates mounting issues with an arm and grommet configuration and 0.5-inch shaft diameter.
- Enhanced Durability: Equipped with permanent ball bearings for reduced friction and extended component life.
- Universal Voltage Compatibility: Engineered for 115/120 VAC applications with an 8.8 Amp draw.
- Standardized Frame: Fits NEMA 48 enclosures, ensuring a drop-in fit for specific Carrier, Bryant, and Payne units.
Common Installation Questions:
Is the HD46MQ133 a direct replacement for my existing blower motor?
Yes, as a Factory Authorized Part, it is the designated OEM replacement for systems requiring this specific 3/4 HP Carrier motor. Always verify the part number on your existing motor nameplate.
Does this motor require a capacitor?
No, this is an ECM blower motor. Unlike standard PSC motors, ECMs use internal electronics to manage phase and rotation, eliminating the need for an external run capacitor.
What is the rotation orientation for this model?
The HD46MQ133 is configured for CCW (Counterclockwise) rotation from the lead end. Ensure this matches your fan wheel requirements before completing the installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
