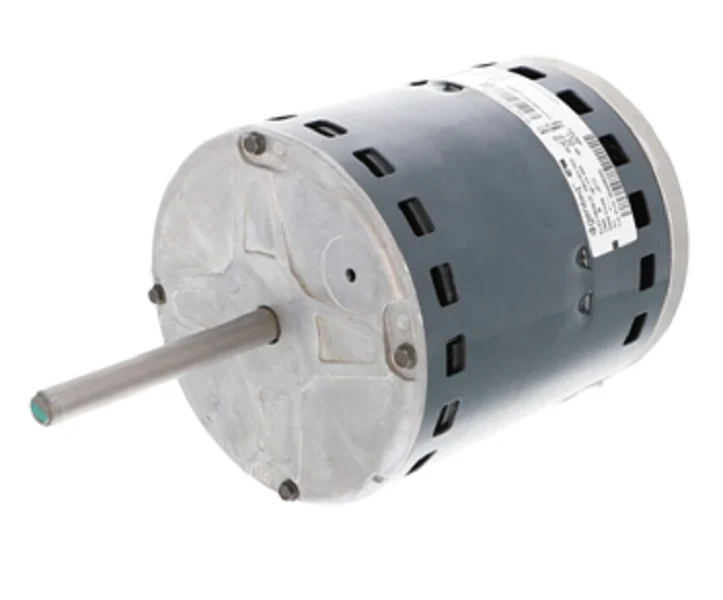

Carrier HD46AR269 Motor
The Carrier HD46AR269 Motor is a high-efficiency 3/4 HP X13 motor specifically engineered for residential and light commercial HVAC blower assemblies. Operating at 208-230V, this ECM blower motor provides constant torque performance, ensuring consistent airflow across varying static pressures. As a genuine OEM replacement part, the HD46AR269 is a direct drop-in for Carrier, Bryant, and Payne units, utilizing a 48-frame diameter and 5/8-inch shaft for seamless mechanical integration. For technicians, the X13 technology means no complex field programming is required; the motor is pre-configured with the necessary speed taps to match the original system performance curve. By maintaining precise RPM control and utilizing brushless DC architecture, this motor significantly reduces energy consumption compared to standard PSC alternatives. Whether addressing a seized bearing or a failed ECM control module, this factory authorized part ensures the system remains within its original design specifications for peak efficiency and air filtration.
Key Benefits- OEM Compatibility: Precision-engineered for Carrier, Bryant, and Payne air handlers and furnaces, eliminating the need for universal mounting brackets.
- Brushless ECM Technology: Provides superior energy efficiency and quieter operation over traditional permanent split capacitor (PSC) motors.
- Plug-and-Play Installation: Pre-programmed speed taps allow for immediate wire-to-wire replacement without external software or interface tools.
- Constant Torque Output: Maintains steady CFM movement to protect heat exchangers from overheating and prevent evaporator coil freeze-ups.
- Industrial Build Quality: Features high-grade ball bearings and internal thermal protection to handle demanding duty cycles in high-static environments.
Is this a direct replacement for my older PSC motor?
The HD46AR269 is an ECM X13 motor. It is designed to replace specific OEM ECM motors. If you are upgrading from a PSC motor, ensure your control board supports the 24V signal required for ECM speed taps.
Does this motor require a run capacitor?
No, as an electronically commutated motor, the Carrier HD46AR269 manages phase conversion internally and does not utilize an external motor run capacitor.
How do I verify if the motor or the module has failed?
Technicians should check for 208-230V line voltage at the power connector and 24V signals at the speed taps. If the motor shaft spins freely and voltage is present but the motor won't start, the integrated ECM module is likely at fault.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
