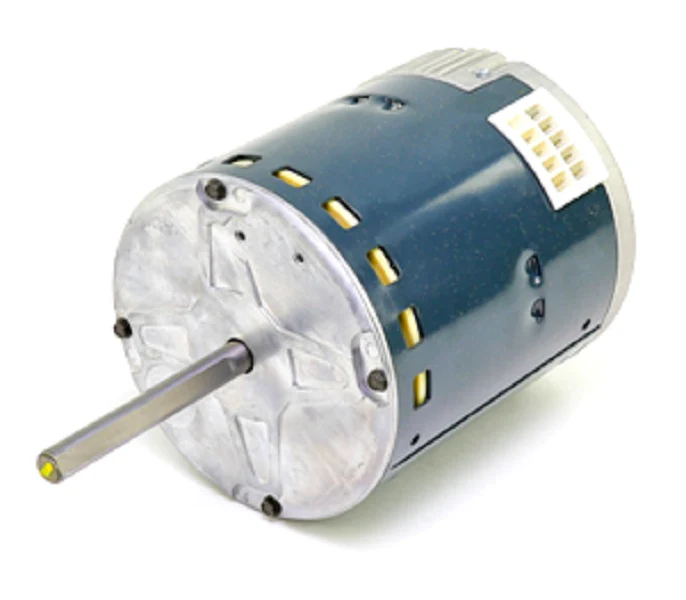

Carrier HD46AR248 Motor
The Carrier HD46AR248 is a high-performance direct drive blower motor designed for heavy-duty residential and commercial HVAC applications. This 3/4 HP motor operates at 208-230V with a rated speed of 1050 RPM, making it a drop-in replacement for demanding air handling units and furnaces. Built on a 48 frame chassis, this single-phase induction motor features an Open Air Over (OAO) enclosure to ensure optimal heat dissipation during continuous operation. As an OEM Carrier replacement motor, it maintains factory performance standards and electrical specifications, including the necessary run capacitor requirements and amperage draw. Contractors favor this multi-speed motor for its reliable sleeve bearing design and standard shaft dimensions, which simplify field installation and minimize vibration transfer. Precise torque output ensures consistent airflow across the heat exchanger, preventing premature component fatigue and maintaining system static pressure balance in Bryant and Carrier HVAC systems.
- Direct Compatibility: Exact electrical and physical match for Carrier HD46AR248 and 5KCP39SGC684S specifications.
- High Efficiency: Optimized 3/4 horsepower rating provides consistent CFM output for large-scale air handlers.
- Durable Construction: Features a resilient 48 frame mount and OAO housing for superior thermal management.
- Contractor Grade: Permanent Split Capacitor (PSC) design offers a balance of high starting torque and operational reliability.
Common Technical Questions
What is the frame size and mounting for this motor?
The HD46AR248 uses a standard 48 frame (5.6-inch diameter) and typically accommodates belly band or stud mounting, depending on the specific bracket configuration of the air handler.
Does this motor require a new run capacitor?
Yes, it is best practice to install a new capacitor that matches the microfarad (MFD) rating listed on the motor nameplate to ensure proper phase shift and motor longevity.
Can this motor replace a higher or lower RPM unit?
No, for proper system performance and to avoid overheating the motor or damaging the blower wheel, always match the 1050 RPM rating of the original equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
