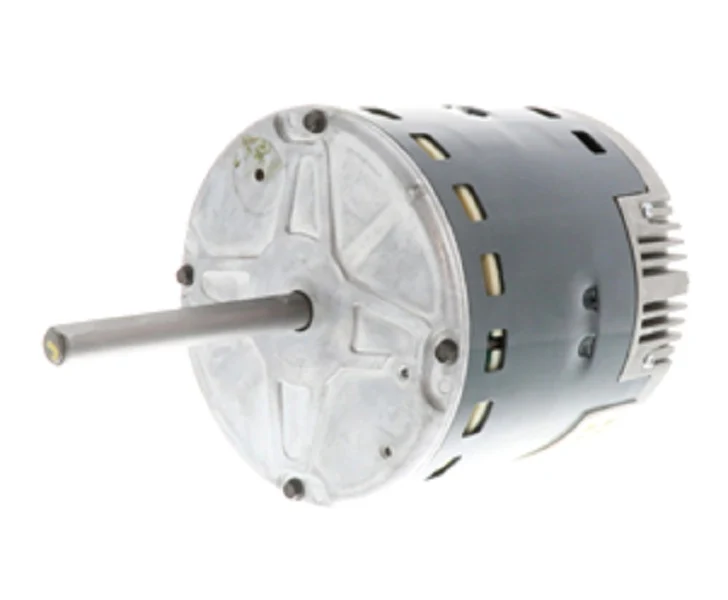

Carrier HD44LR122 Motor
The Carrier HD44LR122 Motor is an OEM direct drive blower motor designed for high-efficiency performance in residential and light commercial HVAC systems. This 1/2 HP ECM X13 motor operates at 1050 RPM and is versatile enough to handle dual-voltage applications at 115/230V. Engineered with a 39 frame (equivalent to a 48 NEMA frame), it features a counter-clockwise (CCW) rotation and an open air-over enclosure for superior thermal management during continuous duty cycles. As a specialized electronically commutated motor, the HD44LR122 provides the precise torque and constant airflow required by modern Carrier, Bryant, and Payne furnaces. For field technicians, this factory authorized replacement motor ensures a drop-in installation without the need for complex mounting modifications or extensive rewiring. This unit is the standard choice for restoring system efficiency and maintaining static pressure balance across the evaporator coil.
Key Benefits for Contractors- Dual Voltage Versatility: Compatible with both 115V and 208-230V single-phase power supplies, reducing truck stock requirements.
- High-Efficiency ECM Technology: Utilizes ECM X13 brushless dc architecture to reduce energy consumption compared to standard PSC motors.
- OEM Fitment: Specifically programmed and framed to match the exact specifications for Carrier furnace blower motor replacements.
- Robust Construction: Features ball bearings and a 1/2-inch diameter shaft for long-term mechanical stability in high-demand environments.
Is the HD44LR122 a direct replacement for GE 5SME39HXL114?
Yes, this motor is the authorized OEM replacement for the GE 5SME39HXL114 and older X13 blower motor models found in many Carrier-family air handlers and furnaces.
Does this motor require a separate capacitor?
No. Because this is an ECM (Electronically Commutated Motor), the control logic and power conversion are handled by the integrated electronic control module (end cap), eliminating the need for a traditional run capacitor.
What is the rotation direction of the HD44LR122?
This motor is lead-end Counter-Clockwise (CCW) rotation. Always verify the rotation of the existing blower wheel before installation to ensure proper airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
