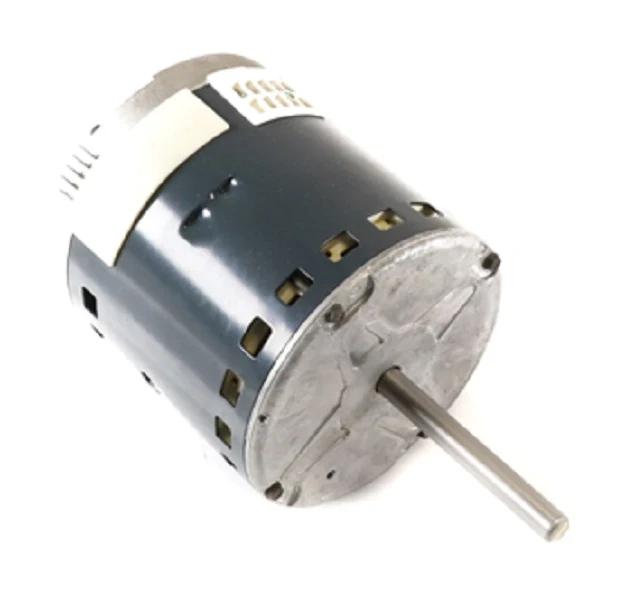

Carrier HD44AR276 Motor
The Carrier HD44AR276 is a professional-grade 1/2 HP X13 blower motor engineered for high-efficiency performance in residential air handlers and furnaces. Operating on 208-230V single-phase power, this ECM motor provides high-torque startup and constant airflow regulation to maintain system static pressure across varied ductwork configurations. As a direct-drive HVAC replacement motor, it features a 48-frame diameter and rotates clockwise (CW) at a rated speed of 1050 RPM. The brushless DC motor design eliminates the carbon brushes found in traditional PSC motors, significantly reducing mechanical wear and audible noise while improving overall seasonal energy efficiency. For contractors performing a field swap, the HD44AR276 utilizes standard 5-pin power and 16-pin control harnesses, allowing for a drop-in installation without the need for external capacitors or complex control board reprogramming. This motor is a critical component for restoring OEM-spec ventilation in Carrier, Bryant, and Payne environments.
Key Benefits for Technicians- Efficient Airflow Delivery: The X13 constant torque technology automatically adjusts to maintain CFM even as static pressure increases from dirty 1-inch filters.
- Simplified Field Replacement: This OEM Carrier motor is a pre-programmed plug-and-play solution that eliminates the need for universal motor mapping or jumper wire configurations.
- Quiet Operation: The electronically commutated motor architecture provides soft-start ramping, reducing the "thump" associated with standard induction motor startups.
- Rugged Frame Construction: Built on a standard NEMA 48 frame, ensuring compatibility with existing belly bands and mounting brackets.
Is this the correct replacement for a failed PSC motor?
No, the Carrier HD44AR276 is an ECM X13 motor and requires a specific high-voltage and low-voltage signal from the control board. It is not a direct replacement for 4-wire PSC motors unless the entire control system is updated.
Does this motor require a run capacitor?
The HD44AR276 is an electronically commutated blower motor with an integrated power module. It does not require a separate start or run capacitor to operate.
What are the signs of a failed X13 motor module?
Common indicators include the motor "cogging" (shaking back and forth) without spinning, or the system displaying a "no blower" fault code while 24V signals are present at the speed taps. Often, the thermal limiter within the ECM module fails due to high static pressure or voltage surges.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Carrier HD44AR276 Motor
The Carrier HD44AR276 is a professional-grade 1/2 HP X13 blower motor engineered for high-efficiency performance in residential air handlers and furnaces. Operating on 208-230V single-phase power, this ECM motor provides high-torque startup and constant airflow regulation to maintain system static pressure across varied ductwork configurations. As a direct-drive HVAC replacement motor, it features a 48-frame diameter and rotates clockwise (CW) at a rated speed of 1050 RPM. The brushless DC motor design eliminates the carbon brushes found in traditional PSC motors, significantly reducing mechanical wear and audible noise while improving overall seasonal energy efficiency. For contractors performing a field swap, the HD44AR276 utilizes standard 5-pin power and 16-pin control harnesses, allowing for a drop-in installation without the need for external capacitors or complex control board reprogramming. This motor is a critical component for restoring OEM-spec ventilation in Carrier, Bryant, and Payne environments.
Key Benefits for Technicians- Efficient Airflow Delivery: The X13 constant torque technology automatically adjusts to maintain CFM even as static pressure increases from dirty 1-inch filters.
- Simplified Field Replacement: This OEM Carrier motor is a pre-programmed plug-and-play solution that eliminates the need for universal motor mapping or jumper wire configurations.
- Quiet Operation: The electronically commutated motor architecture provides soft-start ramping, reducing the "thump" associated with standard induction motor startups.
- Rugged Frame Construction: Built on a standard NEMA 48 frame, ensuring compatibility with existing belly bands and mounting brackets.
Is this the correct replacement for a failed PSC motor?
No, the Carrier HD44AR276 is an ECM X13 motor and requires a specific high-voltage and low-voltage signal from the control board. It is not a direct replacement for 4-wire PSC motors unless the entire control system is updated.
Does this motor require a run capacitor?
The HD44AR276 is an electronically commutated blower motor with an integrated power module. It does not require a separate start or run capacitor to operate.
What are the signs of a failed X13 motor module?
Common indicators include the motor "cogging" (shaking back and forth) without spinning, or the system displaying a "no blower" fault code while 24V signals are present at the speed taps. Often, the thermal limiter within the ECM module fails due to high static pressure or voltage surges.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
