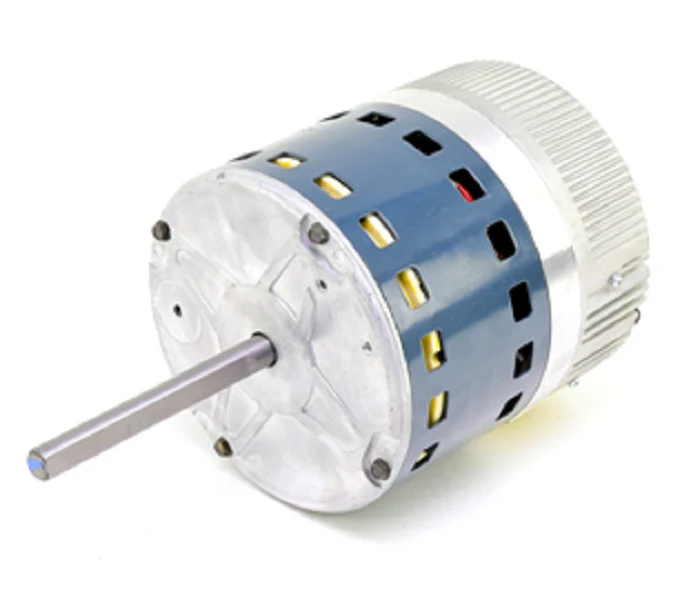

Carrier HD44AR120 Motor
The Carrier HD44AR120 is a high-efficiency ECM blower motor designed for precise airflow control in residential and commercial air handlers and furnaces. Operating at 120/240V with a 1/2 HP rating, this constant torque motor (X13 style) utilizes an integrated electronic control module to maintain consistent CFM across various static pressure conditions. As a direct OEM replacement motor, it ensures seamless integration with existing Carrier, Bryant, and Payne control boards, eliminating the need for complex field modifications. This brushless DC motor significantly reduces power consumption compared to standard induction motors, particularly during continuous fan operation. For field technicians, the HD44AR120 features a standard 48-frame diameter and NEMA-rated mounting holes for straightforward installation. When diagnosing a Carrier furnace blower motor replacement, verify the programmed torque parameters to ensure optimal heat exchanger performance and evaporator coil humidity removal.
- Energy Efficiency: High-efficiency ECM design reduces electrical load and improves SEER ratings during cooling cycles.
- Direct Compatibility: Genuine Carrier motor ensures correct shaft length, rotation, and plug-and-play harness alignment.
- Variable Performance: Provides multiple programmed speed taps to accommodate heating, cooling, and continuous fan requirements.
- Reliable Operation: Ball-bearing construction and moisture-resistant windings are designed for high-cycle HVAC applications.
Common Technical Questions
Can I use an aftermarket VFD with the HD44AR120?
No. This motor contains an internal microprocessor and power inverter designed for specific pulse width modulation or discrete speed tap signals from the OEM furnace control board.
What causes typical ECM module failure in this model?
Most failures are attributed to high static pressure due to restricted ductwork or dirty filters, which forces the electronics to work harder to maintain airflow setpoints.
Is the control module available as a separate service part?
While some modules can be replaced, the HD44AR120 is typically serviced as a complete motor and module assembly to ensure factory-calibrated torque curves are maintained.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,233.43
-65%$1,233.43
$431.70Carrier HD44AR120 Motor
The Carrier HD44AR120 is a high-efficiency ECM blower motor designed for precise airflow control in residential and commercial air handlers and furnaces. Operating at 120/240V with a 1/2 HP rating, this constant torque motor (X13 style) utilizes an integrated electronic control module to maintain consistent CFM across various static pressure conditions. As a direct OEM replacement motor, it ensures seamless integration with existing Carrier, Bryant, and Payne control boards, eliminating the need for complex field modifications. This brushless DC motor significantly reduces power consumption compared to standard induction motors, particularly during continuous fan operation. For field technicians, the HD44AR120 features a standard 48-frame diameter and NEMA-rated mounting holes for straightforward installation. When diagnosing a Carrier furnace blower motor replacement, verify the programmed torque parameters to ensure optimal heat exchanger performance and evaporator coil humidity removal.
- Energy Efficiency: High-efficiency ECM design reduces electrical load and improves SEER ratings during cooling cycles.
- Direct Compatibility: Genuine Carrier motor ensures correct shaft length, rotation, and plug-and-play harness alignment.
- Variable Performance: Provides multiple programmed speed taps to accommodate heating, cooling, and continuous fan requirements.
- Reliable Operation: Ball-bearing construction and moisture-resistant windings are designed for high-cycle HVAC applications.
Common Technical Questions
Can I use an aftermarket VFD with the HD44AR120?
No. This motor contains an internal microprocessor and power inverter designed for specific pulse width modulation or discrete speed tap signals from the OEM furnace control board.
What causes typical ECM module failure in this model?
Most failures are attributed to high static pressure due to restricted ductwork or dirty filters, which forces the electronics to work harder to maintain airflow setpoints.
Is the control module available as a separate service part?
While some modules can be replaced, the HD44AR120 is typically serviced as a complete motor and module assembly to ensure factory-calibrated torque curves are maintained.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
