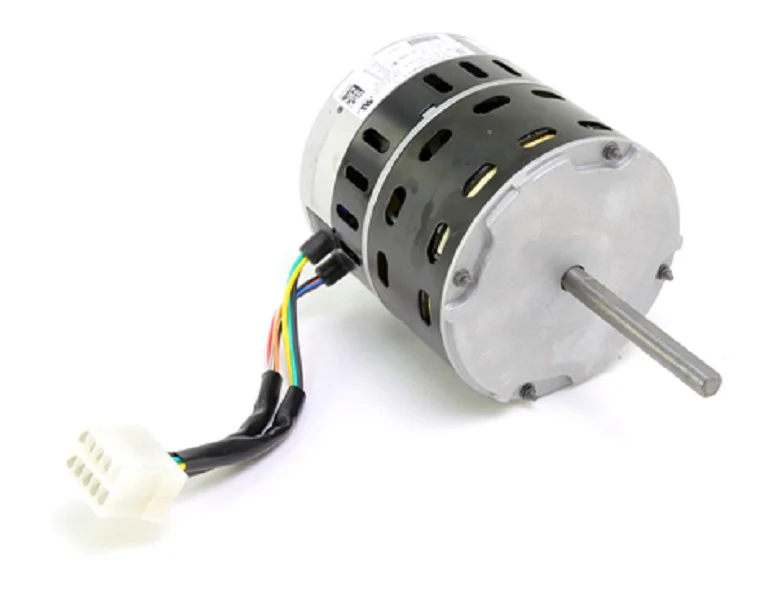

Carrier HD44AQ266 Motor
The Carrier HD44AQ266 Motor is a genuine OEM replacement 1/2 HP X13 ECM blower motor designed specifically for Carrier, Bryant, and Payne residential and light commercial HVAC units. This electronically commutated motor operates on 208-230 VAC at 1050 RPM, providing high-efficiency performance with a counter-clockwise (CCW) rotation. Its X13 constant torque design utilizes 24VAC speed taps, allowing for precise airflow management without the complexity of a VFD or external controls. Built within a 48-frame housing with an open air-over (OAO) enclosure, this unit ensures effective thermal dissipation for continuous duty applications. Designed for a belly band mount, the HD44AQ266 features a 1/2-inch shaft diameter and utilizes ball bearings for increased durability and reduced vibration. When diagnosing, ensure you verify both line voltage and 24V signal communication to the integrated control module to distinguish between motor failure and control logic issues.
- Constant Torque Efficiency: The X13 ECM technology offers significant energy savings over standard PSC motors by maintaining consistent airflow under varying static pressure.
- Factory Authorized Fit: As a Carrier OEM component, this motor is a direct drop-in replacement for legacy units, ensuring correct wiring harness alignment and shaft alignment.
- High-Durability Construction: Featuring a rolled steel frame and NEMA 48 frame dimensions, it is engineered for long-term HVAC blower assembly reliability.
- Versatile Application: Compatible with a wide range of Carrier package units, gas furnaces, and fan coils utilizing 1/2 HP motor specifications.
Common Questions
Is the HD44AQ266 compatible with 115V systems?
No, this specific Carrier blower motor is rated for 208-230V. Installing it in a 115V application will cause the ECM module to fail or function incorrectly.
Can I replace just the module instead of the whole motor?
While the ECM control module is often the point of failure, technician best practices recommend checking the internal windings and ball bearings. If the blower wheel does not spin freely, the motor itself is compromised.
What is the difference between an X13 and a variable speed motor?
The X13 is a constant torque motor that uses discrete 24V taps for speed selection, whereas true variable speed motors (ECM 2.3 or 3.0) use PWM or serial communication for infinite speed adjustment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
