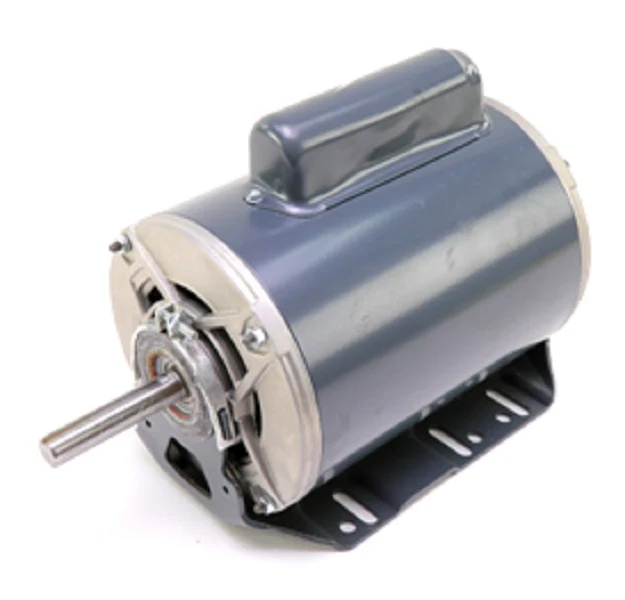

Carrier HC54FR230 Motor
The Carrier HC54FR230 is a heavy-duty 1 HP condenser fan motor engineered for demanding commercial and industrial HVAC applications. Operating at 208-230V and a nominal 1725 RPM, this single-phase induction motor utilizes a 56Y frame for precise mounting and heat dissipation. Designed as a direct OEM replacement motor, it ensures proper airflow dynamics and maintains the factory-specified static pressure requirements of Carrier and Bryant units. The ball-bearing construction and Class B insulation provide reliable performance under high-ambient conditions, while the reversible rotation capability offers versatility for various field configurations. This HVAC replacement part is built for continuous duty, minimizing amperage draw and optimizing electrical efficiency within the cooling circuit. Relying on this 1140 RPM equivalent motor torque performance ensures consistent head pressure control across the coil.
Key Benefits
- Direct OEM Fit: Drop-in compatibility for Carrier HC54FR230 saves time on site.
- Robust Construction: The 56Y frame motor provides superior structural integrity and vibration dampening.
- Thermal Protection: Internal overload protection prevents winding failure during voltage fluctuations.
- High Torque Output: Maintains 1725 RPM under load to ensure optimal heat transfer across the condenser surface.
Common Questions
What are the wiring requirements for the HC54FR230?
This motor requires a 208/230V single-phase power supply and must be paired with the correct run capacitor as specified on the nameplate to ensure proper starting torque and motor longevity.
Is this motor compatible with multiple fan blade pitches?
The 1 HP rating and 1725 RPM speed are designed to handle high-static loads; however, always verify that the fan blade pitch does not exceed the motor's rated Full Load Amps (FLA).
Can the rotation of this motor be reversed in the field?
Yes, the Carrier HC54FR230 typically features reversible leads, allowing for either Clockwise (CW) or Counter-Clockwise (CCW) rotation depending on the specific shroud and blade configuration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
