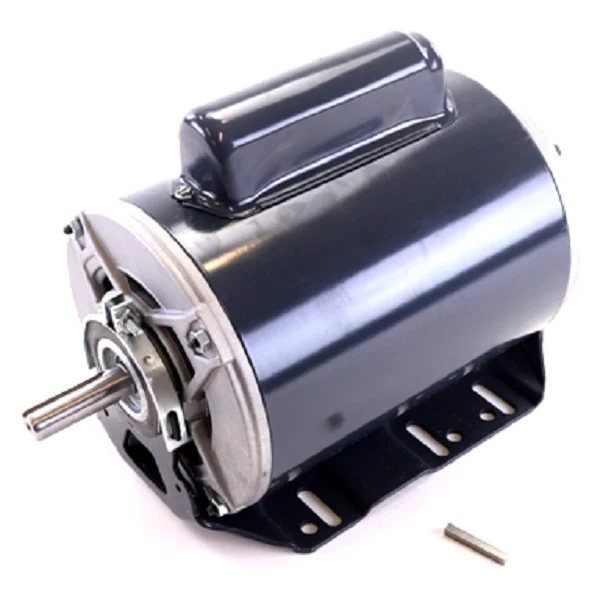

Carrier HC52DL756 Motor
The Carrier HC52DL756 is a high-performance, 1 HP heavy-duty motor engineered for continuous duty in demanding commercial and residential HVACR applications. Operating at a nominal 3450 RPM, this PSC (Permanent Split Capacitor) motor is a versatile dual voltage motor capable of running on 115V or 208-230V single-phase power. It features a NEMA 56R frame with a rigid base mounting, providing a stable platform for belt drive blower motor configurations and high-speed fan assemblies. With a 5/8-inch shaft diameter and CCW (counter-clockwise) rotation, the HC52DL756 motor is the standard OEM replacement motor for Carrier, Bryant, and Payne units, including specific models like the 40BA-009-300. Technical professionals will appreciate the drip-proof air over (DPAO) enclosure and Class B insulation, which ensure reliable thermal management and longevity in high-airflow environments. Whether you are troubleshooting air handlers or upgrading ventilation systems, this 115V/230V 3450 RPM motor delivers the torque and mechanical precision required for optimal system static pressure and CFM performance.
Key Benefits- Dual Voltage Flexibility: Supports 115V or 208-230V configurations, making it compatible with various field power supplies.
- High-Speed Efficiency: Rated at 3450 RPM to maintain high static pressure in belt-driven blower applications.
- OEM Precision: Guaranteed fit for Carrier 1 HP motors, eliminating the need for bracket modifications or shaft adapters.
- Rugged Construction: Built with ball bearings and a NEMA 56R frame for reduced vibration and industrial-grade durability.
- Thermal Protection: Designed with an air-over enclosure to prevent overheating during continuous operation.
Is the HC52DL756 compatible with 277V systems?
No, this motor is specifically rated for 115V and 208-230V single-phase applications. Using it with 277V or 460V power will cause immediate winding failure.
What is the correct rotation for this Carrier motor?
The HC52DL756 is set for CCW (counter-clockwise) rotation from the lead end. Always verify the blower wheel orientation before completing the installation.
Can I use this motor to replace a 1075 or 1725 RPM motor?
This is a 3450 RPM high-speed motor. Replacing a lower RPM motor with this unit will significantly increase amperage draw and likely damage the blower assembly or trip the circuit breaker.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
