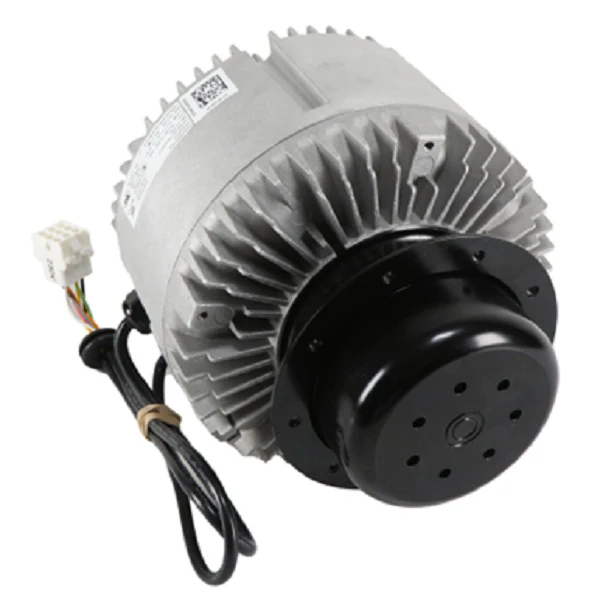

Carrier HC46JQ230 Motor
When you're out on a service call for a Carrier, Bryant, or Payne rooftop unit or air handler, you need a high-torque replacement that matches OEM specs exactly. The Carrier HC46JQ230 Blower Motor is a heavy-duty, 208-230V, 540W single-phase motor engineered by Broad-Ocean to meet the rigorous demands of commercial HVAC airflow systems. This 10-pole motor is the direct replacement for HC46JZ230, operating at a high-speed 2190 RPM with clockwise (CW) rotation to maintain the static pressure required for optimal heat exchange.
Designed for Continuous Air Over (CAO) duty, this motor features Class F insulation and is electronically protected to handle high-ambient temperatures and prevent premature failure during peak cooling cycles. Whether you're servicing a 48TC series unit or similar packaged HVAC systems, the 3.8-4.3 amp draw ensures compatibility with existing electrical circuits and contactors. For a professional install, always inspect the blower wheel for balance issues to protect the new OEM blower motor from vibration-induced bearing wear.
Key Benefits for Contractors- Direct OEM Fit: Drop-in replacement for the HC46JZ230, eliminating field modifications for Carrier and Bryant 48TC002245, 48TC004346, and 48TC004017 models.
- High-Speed Performance: Delivers 2190 RPM at 50/60Hz, providing the velocity needed for large-scale air distribution.
- Industrial Build: Features a moisture-resistant Class F insulation rating and internal thermal protection for long-term reliability in the field.
- Dual-Voltage Compatibility: Operates efficiently across 208-230V 1-Ph power supplies common in commercial and residential settings.
Is the HC46JQ230 a drop-in replacement for the HC46JZ230?
Yes, the HC46JQ230 is the factory-authorized superseding part for the older HC46JZ230 model, maintaining the same physical frame size, wattage, and rotation.
What rotation does this motor use?
This motor utilizes Clockwise (CW) rotation as viewed from the lead end/back of the motor. Always verify your blower wheel orientation before installation.
Does this motor require a specific run capacitor?
As an electronically protected OEM motor, always reference the wiring diagram on the motor plate or the system service manual to ensure you are using the correct MFD rating for the circuit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
