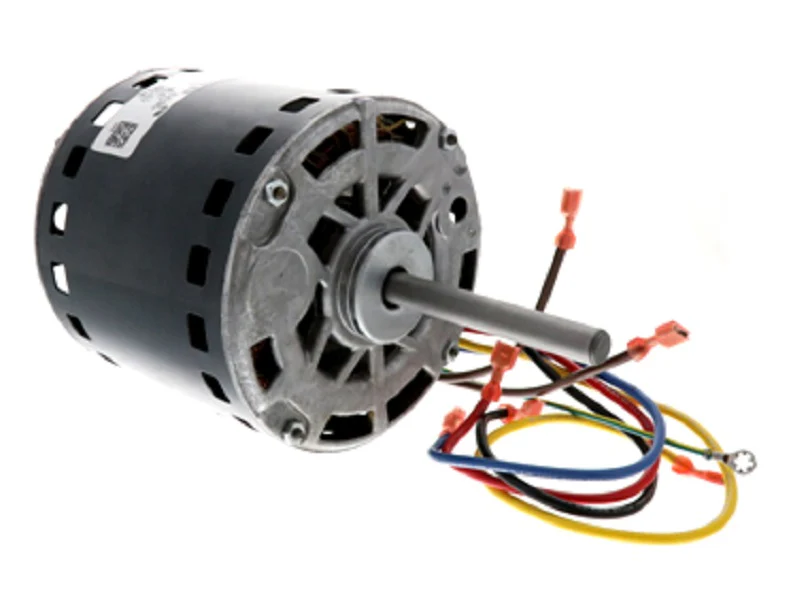

Carrier HC45AE198 Motor
When you need a reliable OEM blower motor replacement for Carrier, Bryant, or Payne units, the Carrier HC45AE198 Motor is the direct performance match for keeping essential airflow consistent. This 3/4 HP furnace blower motor operates at 208-230V and delivers a steady 1075 RPM, providing the high-torque output required for residential and light commercial air handlers. Built with a 48-frame diameter and high-grade Genteq (formerly GE) engineering, this permanent split capacitor (PSC) motor features three speeds to allow for precise airflow balancing across the heat exchanger. The counterclockwise rotation (lead end) and 5.2-amp draw ensure electrical compatibility with existing control boards and wiring harnesses, while the single-side flat shaft facilitates a secure connection to the blower wheel. For the best performance and to prevent premature winding failure, we recommend pairing this install with a fresh 15 MFD 370V capacitor to ensure the motor starts under load without excessive amperage spike.
Key Benefits
- Universal Compatibility: Serves as a direct-fit HVAC replacement motor for a wide range of Carrier, Bryant, and Payne part numbers including HC45AE207, HC45AE201, and HC45AE197.
- Versatile 3-Speed Operation: Optimized for multi-speed cooling and heating applications, allowing for tailored airflow based on the system's static pressure.
- Durable Construction: Engineered with thermally protected internal windings and corrosion-resistant metals for continuous air-over duty in demanding environments.
- Easy Installation: Standard 1/2-inch shaft diameter and 48-frame housing fit into existing motor mounts without the need for additional brackets or modifications.
Common Questions
What capacitor is required for the HC45AE198 motor?
This motor requires a 15 MFD / 370 VAC run capacitor. Using an old or incorrectly rated capacitor can cause the motor to overheat or fail to start, which may lead to permanent winding damage.
Can I use this motor to replace a 1/2 HP model?
While the physical frame might fit, it is critical to match the horsepower and amperage of your original motor. This 3/4 HP motor provides higher torque and should only be used if specified by the equipment manufacturer's technical data sheet.
Is the rotation reversible on this unit?
The Carrier HC45AE198 is typically fixed for CCW rotation from the lead end. Always verify your existing blower wheel's rotation direction before finalizing the installation to ensure proper airflow through the ductwork.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Carrier HC45AE198 Motor
When you need a reliable OEM blower motor replacement for Carrier, Bryant, or Payne units, the Carrier HC45AE198 Motor is the direct performance match for keeping essential airflow consistent. This 3/4 HP furnace blower motor operates at 208-230V and delivers a steady 1075 RPM, providing the high-torque output required for residential and light commercial air handlers. Built with a 48-frame diameter and high-grade Genteq (formerly GE) engineering, this permanent split capacitor (PSC) motor features three speeds to allow for precise airflow balancing across the heat exchanger. The counterclockwise rotation (lead end) and 5.2-amp draw ensure electrical compatibility with existing control boards and wiring harnesses, while the single-side flat shaft facilitates a secure connection to the blower wheel. For the best performance and to prevent premature winding failure, we recommend pairing this install with a fresh 15 MFD 370V capacitor to ensure the motor starts under load without excessive amperage spike.
Key Benefits
- Universal Compatibility: Serves as a direct-fit HVAC replacement motor for a wide range of Carrier, Bryant, and Payne part numbers including HC45AE207, HC45AE201, and HC45AE197.
- Versatile 3-Speed Operation: Optimized for multi-speed cooling and heating applications, allowing for tailored airflow based on the system's static pressure.
- Durable Construction: Engineered with thermally protected internal windings and corrosion-resistant metals for continuous air-over duty in demanding environments.
- Easy Installation: Standard 1/2-inch shaft diameter and 48-frame housing fit into existing motor mounts without the need for additional brackets or modifications.
Common Questions
What capacitor is required for the HC45AE198 motor?
This motor requires a 15 MFD / 370 VAC run capacitor. Using an old or incorrectly rated capacitor can cause the motor to overheat or fail to start, which may lead to permanent winding damage.
Can I use this motor to replace a 1/2 HP model?
While the physical frame might fit, it is critical to match the horsepower and amperage of your original motor. This 3/4 HP motor provides higher torque and should only be used if specified by the equipment manufacturer's technical data sheet.
Is the rotation reversible on this unit?
The Carrier HC45AE198 is typically fixed for CCW rotation from the lead end. Always verify your existing blower wheel's rotation direction before finalizing the installation to ensure proper airflow through the ductwork.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
