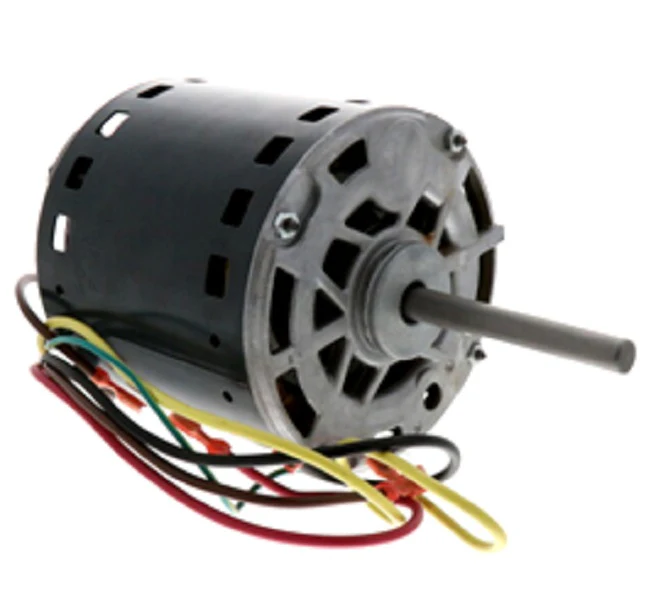

Carrier HC43AZ234 Motor
Standardize your condenser unit performance with the Carrier HC43AZ234 Motor, an OEM HVAC replacement motor designed for demanding cooling applications. This 1/2 HP condenser fan motor operates at 825 RPM, delivering the high-torque, low-speed rotation required for optimal heat dissipation across condenser coils. Engineered as a Permanent Split Capacitor (PSC) motor, it features a 48-frame diameter and runs on a 208-230V single-phase power supply at 60Hz. Technical specifications include a counterclockwise (CCW) rotation, a 1/2-inch shaft diameter with a single side flat, and thermal protection to prevent winding failure during continuous air-over duty. For a complete field install, a 15 MFD at 370 VAC capacitor is required (not included). This motor is a direct factory-authorized part for select Carrier, Bryant, and Payne models, ensuring precise fitment and electrical alignment for professional contractors.
Key Benefits- OEM Precision: Genuine Carrier HC43AZ234 replacement ensures exact frame size and mounting compatibility.
- Optimized Airflow: The 825 RPM rating is specifically calibrated to maximize static pressure efficiency in residential condensing units.
- High Reliability: Features Class B insulation and sleeve bearings for continuous air-over (CAO) duty in high-ambient environments.
- Thermal Protection: Integrated internal overload protection guards against excessive current draw and overheating.
What capacitor is required for the HC43AZ234?
This motor requires a 15 MFD / 370V run capacitor. Always verify the capacitor rating on the motor nameplate before energizing the circuit.
Can I use an 1075 RPM motor to replace this 825 RPM model?
No. Replacing an 825 RPM motor with a higher speed 1075 RPM motor can lead to improper air-to-refrigerant ratios, increased noise, and potential motor overload.
Is the rotation reversible on this part?
This specific Carrier motor is rated for Counterclockwise (CCW) rotation from the lead end. Ensure your fan blade pitch matches this rotation for proper suction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
