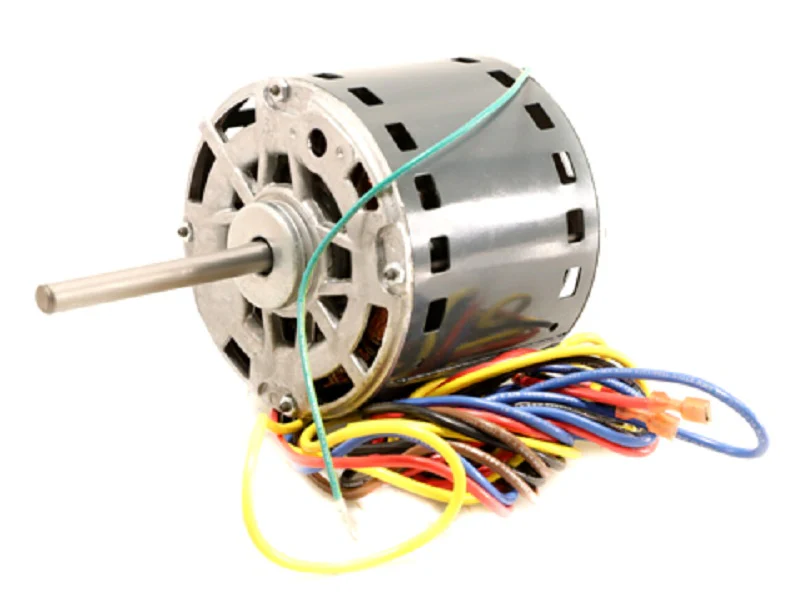

Carrier HC43AE206 Motor
The Carrier HC43AE206 is a heavy-duty 1/2 HP condenser fan motor designed for high-performance heat dissipation in residential and light commercial HVAC units. Operating at 208-230V and a nominal 1075 RPM, this single-phase permanent split capacitor (PSC) motor provides the consistent torque needed to maintain optimal head pressure. Built to NEMA 48 frame specifications, it features a 5.6-inch diameter and a standard 1/2-inch shaft, ensuring direct compatibility with original Carrier, Bryant, and Payne equipment. For a technician in the field, this OEM replacement motor eliminates the mounting headaches associated with "universal" bracket kits while maintaining the factory-specified airflow profile to prevent compressor overheating. The ball bearing design and totally enclosed air over (TEAO) housing offer superior protection against environmental debris and moisture, making it a reliable choice for demanding outdoor duty cycles. This factory-authorized part is engineered to match the exact electrical load and rotational requirements of your specific condensing unit.
Key Benefits- Precision OEM Matching: Designed specifically for Carrier HC43AE206 applications, ensuring the 1075 RPM speed and 1/2 HP output match the original fan blade pitch.
- Robust Electrical Specs: Operates efficiently on 208-230V 1Ph power with a 60Hz frequency, providing stable performance under high-ambient conditions.
- Simplified Installation: The standard 48 frame and stud mount configuration allow for a fast swap-out without modifying the motor lead length or mounting brackets.
- Enhanced Durability: Features an all-angle mounting capability and Class B insulation to withstand the high internal temperatures of mid-season cooling demands.
What is the direction of rotation for the HC43AE206?
This motor is typically Counter-Clockwise Lead End (CCWLE), matching the standard rotation for most Carrier condenser fan blades. Always verify the rotation of the existing blade before completing the installation.
What capacitor is required for this motor?
Most 1/2 HP 1075 RPM motors in this class require a 10 MFD / 370V or 7.5 MFD / 370V run capacitor. It is standard practice to replace the run capacitor when installing a new fan motor to ensure proper phase shift and starting torque.
Can I use this as a replacement for a 1/3 HP motor?
While you can upsize the horsepower to 1/2 HP, you must ensure the RPM (1075) and frame size (48) are an exact match. Upsizing horsepower can provide extra torque, but the unit must still accommodate the physical motor length.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
