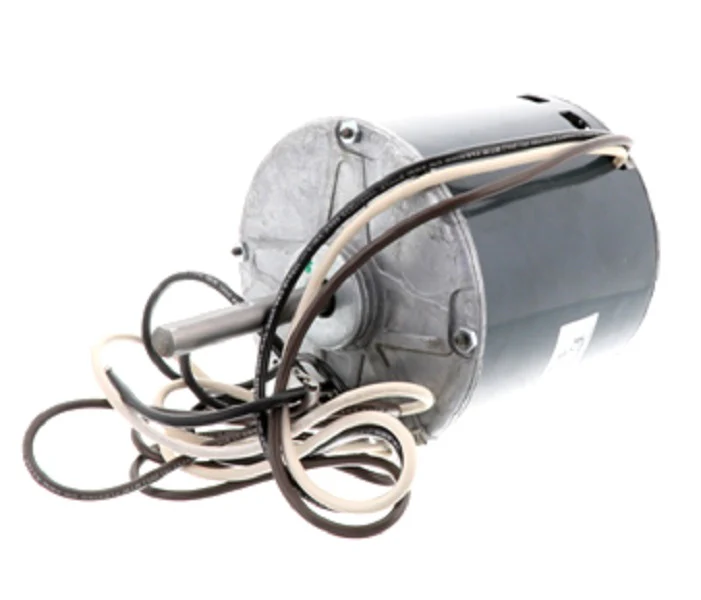

Carrier HC42ME200 Motor
The Carrier HC42ME200 is an OEM condenser fan motor designed for high-duty residential and light commercial HVAC replacement applications. This 1/3 HP motor operates at a rated 1075 RPM, providing the necessary static pressure to pull air through the condenser coils for efficient heat rejection. Engineered for 208-230V single-phase systems, this PSC motor (Permanent Split Capacitor) requires a dedicated run capacitor to maintain torque and efficiency. The motor features a clockwise (CW) rotation and a 48-frame diameter, ensuring a direct fit for many Carrier, Bryant, and Payne outdoor units without the need for mounting bracket modifications. With a full-load amperage of 2.3A, it provides reliable performance under high ambient conditions, preventing HVAC compressor overheating. For contractors, this direct drive motor is the standard solution for restoring system BTU capacity when the original outdoor fan fails to maintain the required airflow across the condensing unit.
Key Benefits- OEM Compatibility: Precision-engineered as a direct replacement for Carrier HC42ME200, ensuring electrical and physical alignment with factory specifications.
- Optimized Airflow: The 1075 RPM speed is calibrated to match original blade pitch requirements, maintaining proper subcooling and head pressure.
- Thermal Protection: Includes internal automatic reset thermal overload protection to prevent winding failure during voltage fluctuations or restricted airflow.
- Built for Durability: Features all-angle sleeve bearings or ball bearings (verify per specific revision) suited for vertical shaft-up or shaft-down condenser fan orientations.
What is the rotation for the HC42ME200?
This motor is a CW (Clockwise) rotation lead-end. When installing, always verify the rotation from the lead end to ensure the fan blade is pulling air correctly through the coil.
Does this motor require a new run capacitor?
Yes, it is best practice for any HVAC technician to replace the run capacitor when installing a new condenser motor. Using an old or out-of-spec capacitor can lead to motor hum and premature winding failure.
Can this motor replace a 1/4 HP or 1/2 HP motor?
Technicians should match the horsepower (HP) and RPM exactly. Stepping down in horsepower will cause the motor to trip on thermal overload, while changing RPM will alter the refrigerant pressures and system efficiency.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
