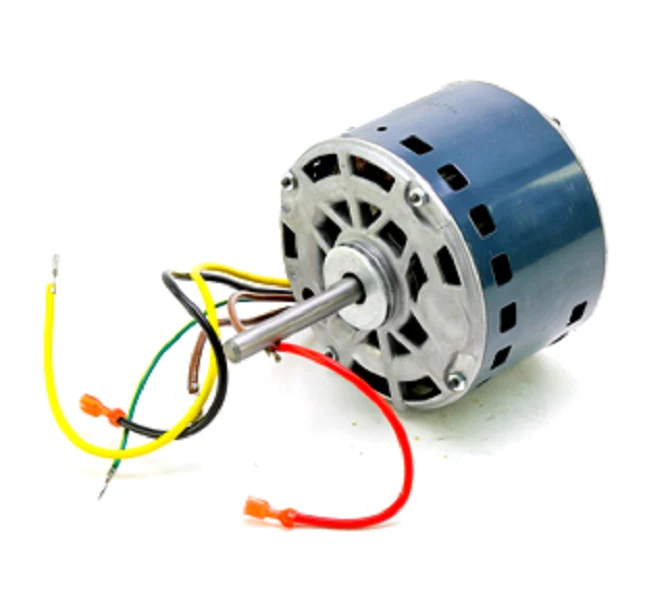

Carrier HC41AE233 Motor
As a veteran technician, you know that a failing blower can compromise an entire system's static pressure and airflow. The Carrier HC41AE233 motor is a genuine OEM replacement engineered for precision in Carrier, Bryant, and Payne air handlers and furnaces. This 1/3 HP blower motor (not 1.3 HP as sometimes mislabeled) operates on a 208-230V single-phase circuit, providing the consistent torque required for high-static applications. With its 2-speed capability (1050/985 RPM), this motor allows for fine-tuning CFM delivery to meet specific load requirements. Built on a Frame 39/48 base with a 1/2-inch diameter shaft, it ensures a direct mechanical fit without the need for field modifications or bracket work. The Genteq 5KCP39FGAA79AS design includes internal thermal protection and sleeve bearings for quiet, continuous air-over (CAO) operation. When swapping this unit, always verify your 10 MFD @ 370 VAC capacitor to ensure proper startup torque and lead-end clockwise rotation.
Key Benefits- OEM Compatibility: Precision-matched for Carrier and Bryant FF1E series air handlers, ensuring plug-and-play integration with Molex connectors.
- Multi-Speed Versatility: Dual-tap design allows for optimized 1050/985 RPM settings to balance noise and airflow.
- Heavy-Duty Construction: Features Class B insulation and an open air-over enclosure for efficient heat dissipation during peak cycles.
- Technical Reliability: Thermally protected windings prevent burnout during restricted airflow conditions or high-head pressure scenarios.
Is the HC41AE233 compatible with 115V systems?
No, this motor is specifically rated for 208-230V operation. Applying 115V will result in low torque and potential winding damage.
Does this motor include a new run capacitor?
Standard packaging typically includes only the motor. Since this unit requires a 10 MFD / 370V capacitor, it is best practice to install a fresh capacitor to prevent premature failure of the new windings.
Which direction does the shaft rotate?
This model rotates Clockwise Lead End (CWLE). Always verify your blower wheel pitch before finalizing the installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $522.66
-65%$522.66
$182.93Carrier HC41AE233 Motor
As a veteran technician, you know that a failing blower can compromise an entire system's static pressure and airflow. The Carrier HC41AE233 motor is a genuine OEM replacement engineered for precision in Carrier, Bryant, and Payne air handlers and furnaces. This 1/3 HP blower motor (not 1.3 HP as sometimes mislabeled) operates on a 208-230V single-phase circuit, providing the consistent torque required for high-static applications. With its 2-speed capability (1050/985 RPM), this motor allows for fine-tuning CFM delivery to meet specific load requirements. Built on a Frame 39/48 base with a 1/2-inch diameter shaft, it ensures a direct mechanical fit without the need for field modifications or bracket work. The Genteq 5KCP39FGAA79AS design includes internal thermal protection and sleeve bearings for quiet, continuous air-over (CAO) operation. When swapping this unit, always verify your 10 MFD @ 370 VAC capacitor to ensure proper startup torque and lead-end clockwise rotation.
Key Benefits- OEM Compatibility: Precision-matched for Carrier and Bryant FF1E series air handlers, ensuring plug-and-play integration with Molex connectors.
- Multi-Speed Versatility: Dual-tap design allows for optimized 1050/985 RPM settings to balance noise and airflow.
- Heavy-Duty Construction: Features Class B insulation and an open air-over enclosure for efficient heat dissipation during peak cycles.
- Technical Reliability: Thermally protected windings prevent burnout during restricted airflow conditions or high-head pressure scenarios.
Is the HC41AE233 compatible with 115V systems?
No, this motor is specifically rated for 208-230V operation. Applying 115V will result in low torque and potential winding damage.
Does this motor include a new run capacitor?
Standard packaging typically includes only the motor. Since this unit requires a 10 MFD / 370V capacitor, it is best practice to install a fresh capacitor to prevent premature failure of the new windings.
Which direction does the shaft rotate?
This model rotates Clockwise Lead End (CWLE). Always verify your blower wheel pitch before finalizing the installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
