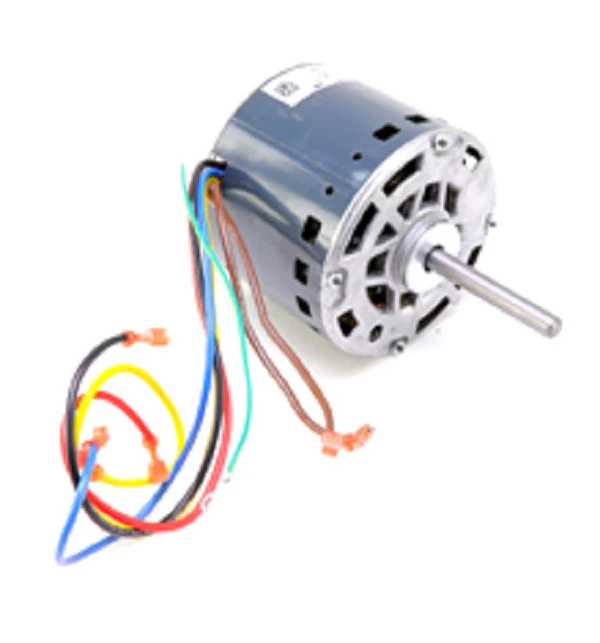

Carrier HC41AE193 Motor
The Carrier HC41AE193 Motor is a high-performance 1/3 HP blower motor engineered for consistent airflow in residential and light commercial air handlers and furnaces. Operating at 208-230V and a nominal 1075 RPM, this 3-speed motor allows for precise field tuning of CFM to match static pressure requirements. This specific multi-speed induction motor is a direct OEM replacement motor for Carrier, Bryant, and Payne units, featuring a standard 48Y frame with a 5-5/8 inch diameter and a 1/2-inch diameter shaft extending approximately 3.25 to 3.75 inches for versatile mounting.
Designed for continuous air-over (CAO) duty, the HC41AE193 blower motor utilizes a permanent split capacitor (PSC) design, ensuring efficient electrical-to-mechanical energy conversion. For optimal performance and to prevent premature winding failure, technicians should pair this unit with a new 15 MFD / 370V capacitor during installation. The thermally protected lead-end rotation is typically counter-clockwise, making it a reliable drop-in solution for Carrier air handler motor swaps where industrial-grade durability is required.
Key Benefits
- Broad Compatibility: Serves as an exact Carrier motor replacement for numerous model series including FA4, FB4, and FC4, ensuring professional-grade fitment.
- Multi-Speed Flexibility: Features 3 distinct speed taps to optimize system performance and manage HVAC blower motor noise levels effectively.
- Robust Construction: Built with a rolled steel frame and aluminum flange to resist corrosion and withstand the high-torque demands of furnace blower motor applications.
- Reliable Protection: Includes internal thermal overload protection to safeguard the 230V electric motor against overheating during high-static conditions.
Common Questions
Does this motor include the run capacitor?
No, the Carrier HC41AE193 requires a separate 15 uF 370 VAC capacitor. We recommend replacing the capacitor whenever a 1/3 HP motor is swapped to ensure proper torque and amperage draw.
How do I verify the rotation for this fan motor?
This motor is typically rated for CCWLE (Counter-Clockwise Lead End) rotation. Always verify the rotation of your existing blower wheel before securing the 1/2-inch shaft to the hub.
Can this be used on 115V systems?
No, this is a 208-230V single-phase motor. Wiring this to a 115V source will result in failure to start or significant torque loss. Always check the equipment nameplate voltage before installation.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
