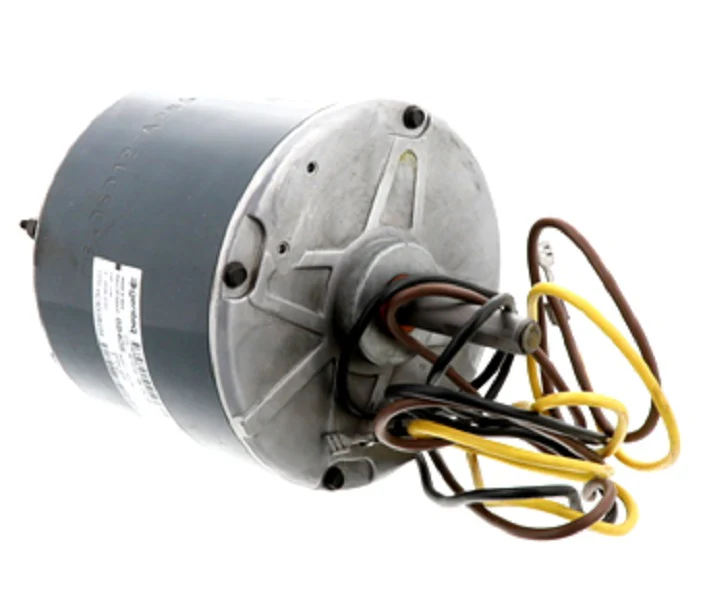

Carrier HC40GR234 Motor
The Carrier HC40GR234 is a Permanent Split Capacitor (PSC) condenser fan motor designed for high-performance operation in rigorous residential and commercial HVAC applications. This 1/4 HP motor operates on a 208-230V, single-phase power supply at a dedicated 825 RPM, providing the low-speed, high-torque air movement required for efficient thermal exchange. Built with a NEMA 48 frame and featuring a clockwise (CW) rotation, it serves as a direct drop-in replacement for the HC40GR234A, maintaining exact OEM specifications across Carrier, Bryant, and Payne condenser units.
For the service technician, this motor features a 1/2-inch diameter shaft with a flat side, facilitating secure blower wheel or fan blade attachment. Its ball bearing construction and continuous air over (CAO) duty rating ensure the unit remains thermally protected during prolonged summer cycles. When installing this HVAC replacement motor, it is industry best practice to replace the 7.5 MFD / 370 VAC capacitor to ensure optimal starting torque and prevent premature winding failure. The rugged rolled steel frame and aluminum flange offer superior corrosion resistance in demanding outdoor environments.
Key Benefits- Direct OEM Compatibility: Seamlessly replaces Carrier HC40GR234 and HC40GR234A models without mounting modifications.
- Enhanced Durability: Equipped with ball bearings and thermal protection for extended service life in high-ambient conditions.
- Precise Performance: Operates at a steady 825 RPM to maintain original system CFM and static pressure requirements.
- Efficient Design: The PSC motor architecture offers a balance of energy efficiency and reliable starting power.
Is the HC40GR234 compatible with the HC40GR234A?
Yes, these two part numbers are identical in technical specifications, frame size, and performance, making them fully interchangeable.
What capacitor is required for this motor?
This motor requires a 7.5 MFD / 370 VAC capacitor for proper operation. Using an old or incorrectly rated capacitor can damage the new motor windings.
What is the rotation direction of this unit?
The HC40GR234 is engineered for clockwise (CW) rotation when viewed from the lead end/back of the motor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
