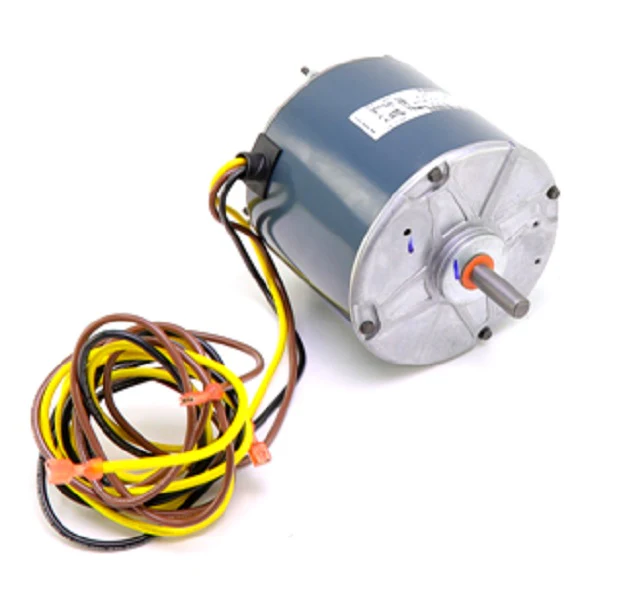

Carrier HC39GE471 Motor
The Carrier HC39GE471 is a high-performance 460V condenser fan motor designed for heavy-duty industrial and commercial HVACR applications. This 1/3 HP motor operates at 1100 RPM, providing the consistent torque required to drive airflow across condenser coils for optimal heat rejection. As a genuine OEM Carrier replacement motor, the HC39GE471 features a single-phase, permanent split capacitor (PSC) design, ensuring electrical efficiency and compatibility with specific Carrier, Bryant, and Payne units. The TEFC (Totally Enclosed Fan Cooled) construction and IP55 protection rating safeguard internal components against dust and moisture, extending the service life of the condenser fan motor in demanding outdoor environments. With a 1/2 inch by 1 1/2 inch shaft and clockwise (CW) rotation, this 460V 1/3 HP motor is engineered for vertical mounting and precise mechanical fit, reducing vibration and premature wear on the fan assembly.
- OEM Compatibility: Exact drop-in replacement for Carrier HC39GE471, ensuring zero-modification installation in 48PG and 50PG series models.
- Industrial Build: Features a robust frame and heavy-duty bearings designed to withstand the thermal stress of continuous HVAC cycles.
- Optimized Performance: The 1100 RPM speed is calibrated for maximum CFM output while maintaining low amperage draw (0.8A).
- Environmental Protection: Totally Enclosed Fan Cooled (TEFC) housing prevents contaminant ingress, crucial for rooftop or coastal installations.
Common Questions
What are the electrical requirements for the HC39GE471?
This motor requires a 460V, 50/60Hz, single-phase power supply. It is typically paired with a 10 MFD @ 370 VAC capacitor (sold separately) to ensure proper starting torque and running efficiency.
Which direction does the shaft rotate?
The motor is designed for Clockwise (CW) rotation when viewing the lead end. Always verify your existing fan blade pitch to ensure proper airflow direction before completing the installation.
Can this motor be mounted in any orientation?
Technical specifications for the HC39GE471 indicate it is optimized for vertical mount applications within the condenser section to ensure proper lubrication and cooling of the internal sleeve bearings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $590.50
-65%$590.50
$206.67Carrier HC39GE471 Motor
The Carrier HC39GE471 is a high-performance 460V condenser fan motor designed for heavy-duty industrial and commercial HVACR applications. This 1/3 HP motor operates at 1100 RPM, providing the consistent torque required to drive airflow across condenser coils for optimal heat rejection. As a genuine OEM Carrier replacement motor, the HC39GE471 features a single-phase, permanent split capacitor (PSC) design, ensuring electrical efficiency and compatibility with specific Carrier, Bryant, and Payne units. The TEFC (Totally Enclosed Fan Cooled) construction and IP55 protection rating safeguard internal components against dust and moisture, extending the service life of the condenser fan motor in demanding outdoor environments. With a 1/2 inch by 1 1/2 inch shaft and clockwise (CW) rotation, this 460V 1/3 HP motor is engineered for vertical mounting and precise mechanical fit, reducing vibration and premature wear on the fan assembly.
- OEM Compatibility: Exact drop-in replacement for Carrier HC39GE471, ensuring zero-modification installation in 48PG and 50PG series models.
- Industrial Build: Features a robust frame and heavy-duty bearings designed to withstand the thermal stress of continuous HVAC cycles.
- Optimized Performance: The 1100 RPM speed is calibrated for maximum CFM output while maintaining low amperage draw (0.8A).
- Environmental Protection: Totally Enclosed Fan Cooled (TEFC) housing prevents contaminant ingress, crucial for rooftop or coastal installations.
Common Questions
What are the electrical requirements for the HC39GE471?
This motor requires a 460V, 50/60Hz, single-phase power supply. It is typically paired with a 10 MFD @ 370 VAC capacitor (sold separately) to ensure proper starting torque and running efficiency.
Which direction does the shaft rotate?
The motor is designed for Clockwise (CW) rotation when viewing the lead end. Always verify your existing fan blade pitch to ensure proper airflow direction before completing the installation.
Can this motor be mounted in any orientation?
Technical specifications for the HC39GE471 indicate it is optimized for vertical mount applications within the condenser section to ensure proper lubrication and cooling of the internal sleeve bearings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
