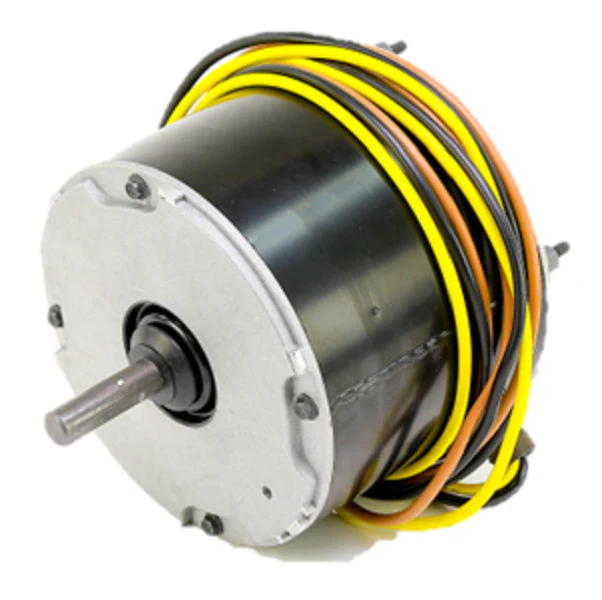

Carrier HC39GE208 Motor
The Carrier HC39GE208 Condenser Fan Motor is a high-performance, 1/4 HP, 208/230V single-phase mechanical heart designed for heavy-duty heat rejection in residential and commercial outdoor units. This OEM Carrier replacement motor is the direct, factory-authorized successor to the HC680080, ensuring a perfect drop-in fit without the need for bracket modifications or shaft adjustments. Operating at a dual-speed range of 1100/900 RPM with a 48Y frame size, it maintains intended airflow across the coils to prevent high-head pressure lockouts. Technical pros value the CWLE (Clockwise Lead End) rotation and the 1/2-inch diameter flat shaft for secure fan blade seating. This PSC (Permanent Split Capacitor) motor requires a 10 MFD 370V run capacitor for optimal torque and thermal protection. By using a genuine Carrier HC39GE208, technicians eliminate the vibration and "bearing growl" often associated with universal alternatives, preserving the system's original SEER rating and operational decibel levels during peak demand.
- Direct OEM Swap: Specifically engineered to replace the HC680080 and HC39GE208A, maintaining factory electrical specs and mounting alignments.
- Dual-Speed Performance: Rated for 1100 RPM on high and 900 RPM on low to match original system staging requirements.
- Enhanced Durability: Features an all-angle sleeve bearing system and Class B insulation for continuous "air over" duty in high-ambient environments.
- Standardized Frame: Utilizes a 48Y NEMA frame with through-bolt mounting, compatible with most 5-5/8 inch motor diameter brackets.
- Thermal Protection: Includes internal automatic reset thermal overload protection to prevent winding burnout during restricted airflow conditions.
Common Questions
What capacitor is required for the HC39GE208?
This motor requires a 10 MFD / 370V run capacitor. To ensure long-term reliability and prevent premature winding failure, it is a standard trade practice to replace the capacitor whenever a new motor is installed.
Is this a direct replacement for the HC680080?
Yes, the HC39GE208 is the current Factory Authorized Part designated to replace the obsolete HC680080. It matches all electrical and mechanical specifications, including shaft length and rotation.
Can I use this motor if my original was 220V?
Yes, this motor is rated for 208-230V / 220VAC at 50/60Hz, making it compatible with standard dual-voltage systems common in Carrier, Bryant, and Payne equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $527.60
-65%$527.60
$184.66Carrier HC39GE208 Motor
The Carrier HC39GE208 Condenser Fan Motor is a high-performance, 1/4 HP, 208/230V single-phase mechanical heart designed for heavy-duty heat rejection in residential and commercial outdoor units. This OEM Carrier replacement motor is the direct, factory-authorized successor to the HC680080, ensuring a perfect drop-in fit without the need for bracket modifications or shaft adjustments. Operating at a dual-speed range of 1100/900 RPM with a 48Y frame size, it maintains intended airflow across the coils to prevent high-head pressure lockouts. Technical pros value the CWLE (Clockwise Lead End) rotation and the 1/2-inch diameter flat shaft for secure fan blade seating. This PSC (Permanent Split Capacitor) motor requires a 10 MFD 370V run capacitor for optimal torque and thermal protection. By using a genuine Carrier HC39GE208, technicians eliminate the vibration and "bearing growl" often associated with universal alternatives, preserving the system's original SEER rating and operational decibel levels during peak demand.
- Direct OEM Swap: Specifically engineered to replace the HC680080 and HC39GE208A, maintaining factory electrical specs and mounting alignments.
- Dual-Speed Performance: Rated for 1100 RPM on high and 900 RPM on low to match original system staging requirements.
- Enhanced Durability: Features an all-angle sleeve bearing system and Class B insulation for continuous "air over" duty in high-ambient environments.
- Standardized Frame: Utilizes a 48Y NEMA frame with through-bolt mounting, compatible with most 5-5/8 inch motor diameter brackets.
- Thermal Protection: Includes internal automatic reset thermal overload protection to prevent winding burnout during restricted airflow conditions.
Common Questions
What capacitor is required for the HC39GE208?
This motor requires a 10 MFD / 370V run capacitor. To ensure long-term reliability and prevent premature winding failure, it is a standard trade practice to replace the capacitor whenever a new motor is installed.
Is this a direct replacement for the HC680080?
Yes, the HC39GE208 is the current Factory Authorized Part designated to replace the obsolete HC680080. It matches all electrical and mechanical specifications, including shaft length and rotation.
Can I use this motor if my original was 220V?
Yes, this motor is rated for 208-230V / 220VAC at 50/60Hz, making it compatible with standard dual-voltage systems common in Carrier, Bryant, and Payne equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
