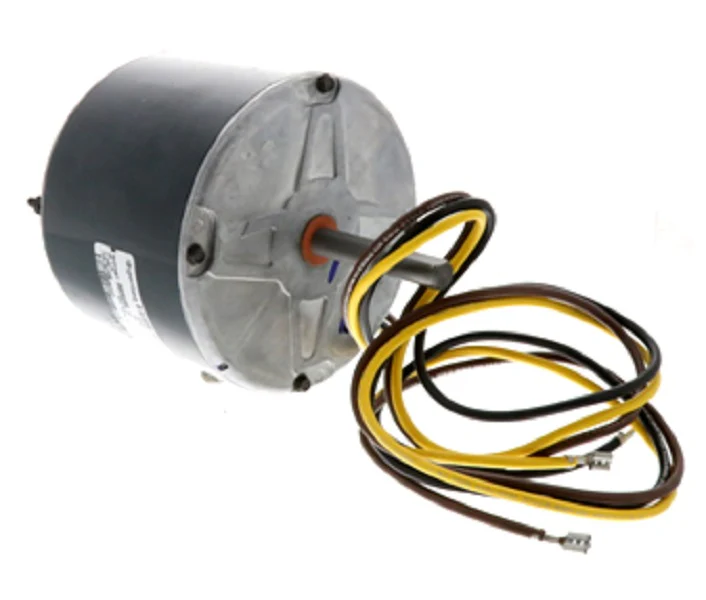

Carrier HC38GR237 Motor
The Carrier HC38GR237 is a heavy-duty, OEM replacement condenser fan motor engineered for high-static residential and light commercial HVAC systems. This 1/5 HP permanent split capacitor (PSC) motor operates on 208-230V single-phase power, delivering a consistent 810 RPM to maintain optimal head pressure and heat transfer across the condenser coils. Built by Genteq (Manufacturer Model 5KCP39FFBB95AS), this unit features a NEMA 48 frame with a 1/2-inch diameter by 2 1/2-inch long shaft, ensuring a drop-in fit for compatible Carrier, Bryant, and Payne condensing units. The clockwise (CW) rotation and thermally protected Class B insulation are designed for continuous air-over (CAO) duty, providing reliable performance in demanding ambient conditions. For a professional-grade installation, always verify the 5 MFD / 370V capacitor requirement and inspect the fan blade for balance issues to prevent premature bearing wear or vibration-induced failure.
Key Benefits
- Direct OEM Compatibility: Ensures seamless integration with Carrier HC38GR237 mounting patterns and electrical specifications, eliminating the need for field modifications.
- Optimized Thermal Performance: The 810 RPM low-speed design reduces operational noise while providing sufficient CFM for efficient refrigerant cooling.
- Rugged Construction: Features a NEMA 48 frame and thermally protected windings to withstand high-temperature outdoor environments.
- Simplified Serviceability: Standard 1/2-inch shaft diameter accommodates most factory-issued fan blades used in 1/5 HP HVAC motor applications.
Common Questions
What capacitor is required for the HC38GR237?
This motor requires a 5 MFD / 370V run capacitor. It is a best practice for technicians to replace the capacitor during any motor swap to ensure proper torque and prevent overheating.
Is this motor reversible?
No, this specific model is a fixed Clockwise (CW) rotation unit. Always confirm the rotation of the existing fan blade before ordering to ensure correct airflow direction through the coil.
Can I use this for a furnace blower?
This is an outdoor condenser fan motor designed for continuous air-over cooling. It is not intended for use as an indoor furnace blower motor, which typically requires different torque curves and mounting configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
