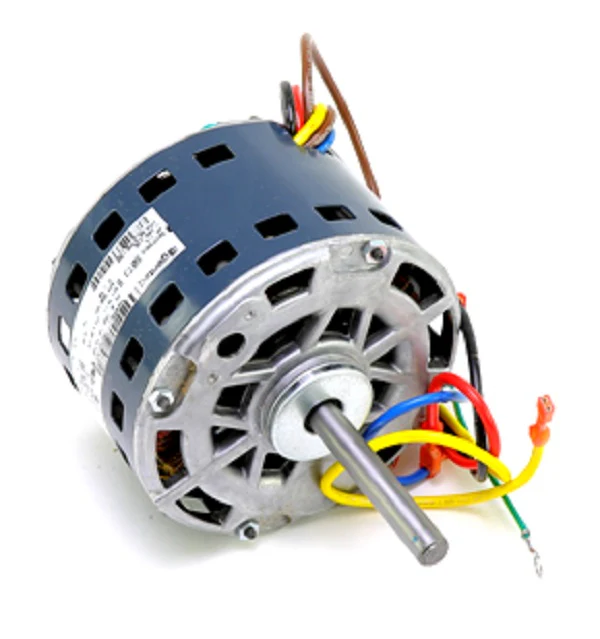

Carrier HC37AE198 Motor
The Carrier HC37AE198 is an OEM direct drive blower motor engineered for high-static pressure applications in residential and light commercial air handlers and furnaces. Operating at 208-230V, this 1/5 HP motor delivers a steady 950 RPM, utilizing a PSC (Permanent Split Capacitor) design to maintain efficiency across its 3-speed configurations. Designed as a drop-in replacement for specific Carrier, Bryant, and Payne units, it features a 42-frame diameter and ball bearing construction to ensure thermal stability and long-term reliability in high-cycle environments. As a professional-grade HVAC blower motor replacement, it provides the precise torque profile required to maintain proper CFM across the evaporator coil, preventing icing and ensuring optimal heat transfer. When installing, ensure the run capacitor (not included) matches the microfarad rating specified on the nameplate for proper phase shift and starting torque performance.
Key Technical Benefits:
- Multi-Speed Versatility: The 3-speed configuration allows for precise airflow tuning to meet specific system static pressure requirements.
- OEM Fitment: Factory-spec mounting and shaft dimensions eliminate field modifications during installation.
- Thermal Protection: Includes internal automatic reset thermal overload protection to prevent winding failure during restricted airflow conditions.
- Energy Efficiency: Optimized 208-230V operation reduces amp draw while maintaining consistent 950 RPM output.
Common Questions & Contractor Insights:
What capacitor is required for the HC37AE198?
Always verify the nameplate, but typically these 1/5 HP units require a 5 MFD / 370V capacitor. Using an incorrectly rated capacitor will cause excessive heat and premature winding failure.
Can this motor be used in 115V applications?
No, this is a dedicated 208-230V component. Applying 115V will result in a failure to start or a motor burnout.
Is this motor reversible?
The HC37AE198 is typically CWLE (Clockwise Lead End) rotation. Always confirm rotation against the existing blower wheel orientation before securing the mounting bolts.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
