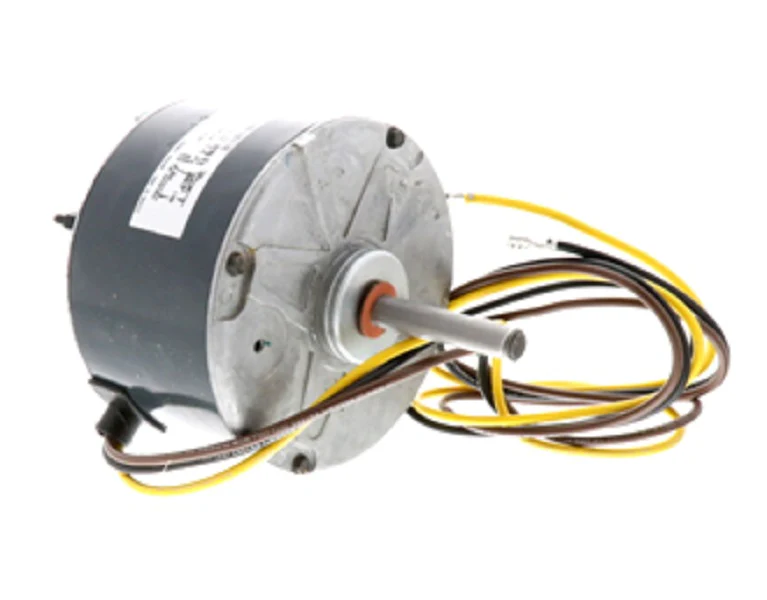

Carrier HC34GE240 Motor
The Carrier HC34GE240 motor is a 1/10 HP condenser fan motor engineered for precision performance in Carrier, Bryant, and Payne residential condensing units. This PSC (Permanent Split Capacitor) motor operates at 1100 RPM on a 208-230V, 60Hz single-phase circuit, drawing a nominal 0.75 Full Load Amps (FLA). Built with a NEMA 48 frame and Class B insulation, it is designed for continuous duty (S1) in demanding outdoor environments. The motor features thermal overload protection to prevent winding failure during high-head pressure conditions and supports clockwise (CW) rotation as viewed from the lead end. This OEM replacement motor ensures factory-spec airflow across the condenser coils, maintaining optimal subcooling and system efficiency. When performing a swap, verify your run capacitor values to ensure the start-torque meets manufacturer requirements for these HVAC replacement parts.
Key Benefits- Factory Authorized Part: Direct OEM replacement ensures mounting bolt patterns and shaft dimensions align perfectly with existing fan blades and motor brackets.
- Enhanced Thermal Protection: Internal thermal overload switches prevent burnout during extreme ambient temperatures or voltage fluctuations.
- High-Efficiency PSC Design: The 1/10 HP permanent split capacitor motor architecture provides reliable torque with lower amperage draw.
- Direct Drive Reliability: Designed for silent, 1100 RPM operation to minimize vibration and cabin noise in residential Split-System Air Conditioners.
Is this motor compatible with my specific Carrier unit?
This condenser fan motor is a common fit for 24ABA and 25HBA series units. Check your data plate; if it lists HC34GE240, this is the correct direct-replacement component.
Does this motor include the run capacitor?
Typically, HVAC motors of this type are sold individually. It is standard trade practice to replace the run capacitor simultaneously to preserve the life of the new 1/10 HP motor windings.
What is the rotation direction?
The Carrier HC34GE240 is configured for Clockwise (CW) rotation. Always check the pitch of your existing fan blade before installation to ensure proper airflow direction through the coil.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
